Customized PET Steel Strap Production Line 9-32mm Width With 100% PET Crushed Material

PET plastic steel strapping production line Customized 9-32mm PET strapping equipment with 100% PET crushed material

Product Description of PET strapping tape production line

PET plastic steel strip production line

Features :

1. Good tensile strength----PET strapping tape production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping band is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping belt is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping band is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding

                     EXTRUSION PARAMETERS TABLE

PET plastic steel belt production line------ ADVANTAGES
1. Screw-----Use the special screw of PET extruder, the screw has a unique separation and mixing effect, which ensures the uniform plasticization of raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, high wear resistance, etc.
2. Dehumidification part-----Use honeycomb rotary dehumidification and drying system to dry raw materials, Japanese imported filter element, -50℃ dew point to ensure that the moisture content of raw materials is ≤50PPM, and it has solid phase polycondensation viscosity increasing effect on the original,
3. Filter net----Three-dimensional folding large area single cylinder filter device, the expanded area of the filter net is 30 times larger than the area of the traditional flat filter net; the filter mesh can reach 80 meshes, unique screen changing device, the filter net cover can be reused, saving manufacturing costs.
4. Stretching process----Use two high-speed stretching processes, the finished PET belt has good rigidity, consistent width and thickness dimensions, small error range, and improves the tensile strength of the finished PET belt.

PET belt making machine-----SCREW

1. Single screw extruder, equipped with automatic mixing and feeding system, PET plastic steel belt special screw and complete set of screw sleeve, with high plasticization rate, uniform melt, continuous and stable production.

2. High-performance gearbox reducer, large torque, long life and low noise.

3. Equipped with automatic feeding, proportioning, metering and mixing system for raw materials and additives, no manual addition is required, reducing manufacturing costs.

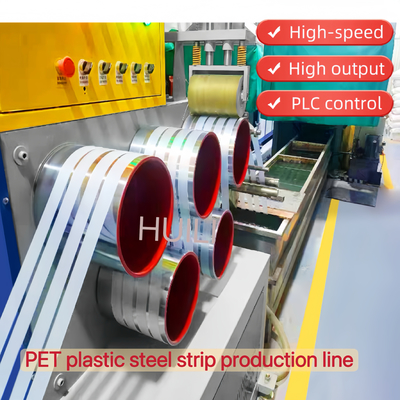

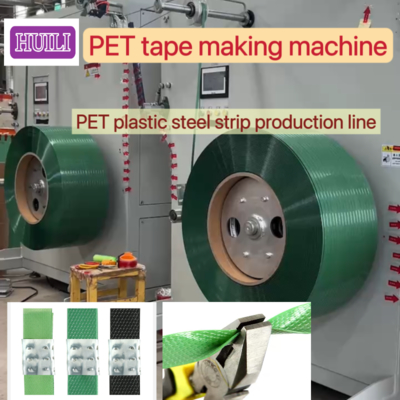

PET plastic steel belt----finished product

International standard for pet plastic steel packing belt

PET plastic steel packing belt is a new type of environmental protection binding material, with high strength, high temperature resistance, cold resistance, waterproof, moisture-proof, and beautiful no rust and other advantages, widely used in various industries.

After-sales service

Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:

Pre-sales:

1. Layout of PET plastic steel belt equipment.

2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.

3. Analysis of raw materials used in PET plastic steel belt equipment.

After-sales service:

1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.

2. Installation, commissioning and training of PET plastic steel belt equipment.

3. Maintenance service of PET plastic steel belt equipment.

4. Regular maintenance and repair

5. Fault diagnosis

6. Software update and upgrade

7. Spare parts and accessories

8. Training and technical consultation

FAQ:

Q: What is the voltage of the PET plastic steel belt equipment?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the PET plastic steel belt equipment?

A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H

Q: What is the producible width of the PET plastic steel belt equipment?

A: 9-32mm

Q: Can the PET plastic steel belt equipment be customized?

A: Customization supported

Q: Where does the PET plastic steel belt equipment come from?

A: China.

Q: What are the certifications for the PET plastic steel belt equipment?

A: ISO CEO certification.

Q: What is the minimum order quantity for the PET plastic steel belt equipment?

A: 1 set

Q: What is the weight of the PET plastic steel belt equipment?

20T, 40GP container * 3PCS
