Auto Models PET Strap Making Machine Polyethylene Strapping Belt Production Line

Green PET plastic steel strapping production line PET strapping equipment with PET strapping band

FEATURE DESCRIPTION OF PET STRAP MAKING MACHINE:

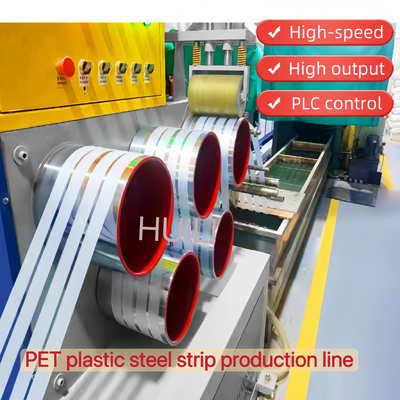

PET plastic steel strip production line

PET strap making machine/PET strapping belt production line is a special equipment for producing polyethylene terephthalate (PET) plastic strapping band, which is widely used in logistics, packaging, building materials, papermaking and other industries.

Components of PET strapping belt production line:

Extruder---- heat and melt the PET raw materials (granules or recycled materials) and extrude them through screws.

Mold (die head)----- The molten PET is formed into a strip through the mold, and the width and thickness are adjustable.

Cooling water tank---- Rapidly cool and shape the high-temperature strip PET.

Stretching system---- Improve the strength and toughness of the strapping tape by heating and bidirectional stretching (longitudinal/transverse).

Embossing roller---- Press the pattern on the belt surface to increase friction and aesthetics.

Winder----- Wind the finished strapping tape into a roll, which can be equipped with automatic roll changing function.

Control system----- PLC or computer control, adjust parameters such as temperature, speed, tension, etc.

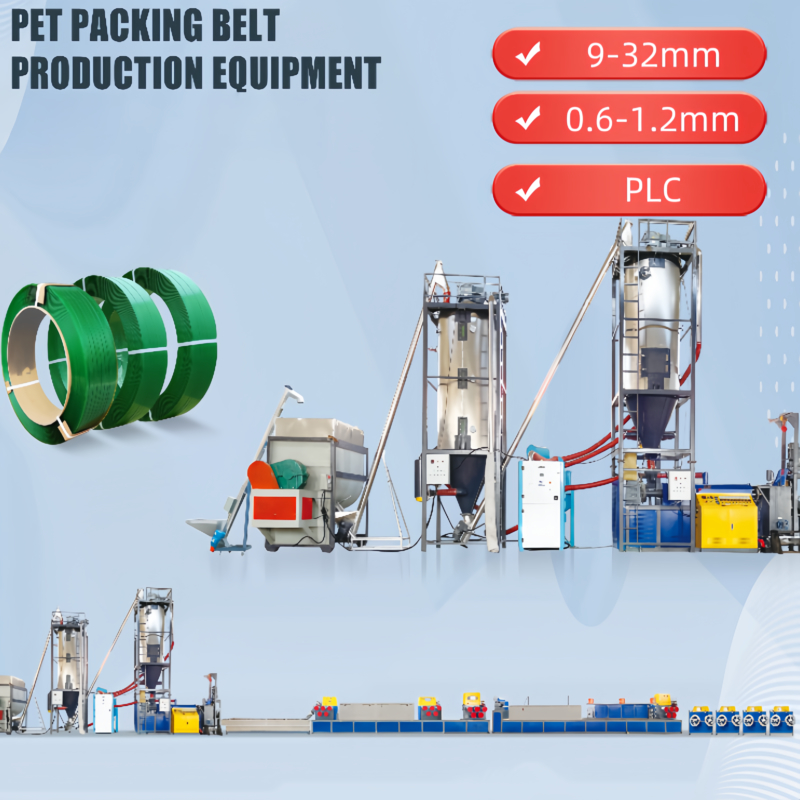

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding

                     EXTRUSION PARAMETERS TABLE

PET plastic steel belt production line------ ADVANTAGES

1. Special single screw extrusion technology, screw size can be customized according to customer requirements.

2. Raw materials: 100% recycled PET bottle flakes or PET crushed materials (after Grace-M PET cleaning and recycling line)

3. Plasticization is uniform throughout the line, extrusion is stable, and PC is automatically controlled

4. According to different requirements, replace the A coating material to make the belt have better and special functions. For example, the belt used for packaging cotton can improve the breaking strength and joint strength of the belt when welding

Number of belts: 1-8 straps

PET belt making machine-----SCREW

1. Single screw extruder, equipped with automatic mixing and feeding system, PET plastic steel belt special screw and complete set of screw sleeve, with high plasticization rate, uniform melt, continuous and stable production.

2. High-performance gearbox reducer, large torque, long life and low noise.

3. Equipped with automatic feeding, proportioning, metering and mixing system for raw materials and additives, no manual addition is required, reducing manufacturing costs.

PET plastic steel belt----finished product

International standard for pet plastic steel packing belt

PET plastic steel packing belt is a new type of environmental protection binding material, with high strength, high temperature resistance, cold resistance, waterproof, moisture-proof, and beautiful no rust and other advantages, widely used in various industries.

Widely used for strapping of various heavy goods, used to fix goods during transportation, in warehouses,

PET packing belt is also often used to fix goods, used in heavy industries, such as strapping and fixing of building materials.

After-sales service

Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:

Pre-sales:

1. Layout of PET plastic steel belt equipment.

2. Analysis of finished product manufacturing costs of PET strap making machine.

3. Analysis of raw materials used in PET strap making machine.

After-sales service:

1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET strap making machine.

2. Installation, commissioning and training of PET strap making machine.

3. Maintenance service of PET strap making machine.

4. Regular maintenance and repair

5. Fault diagnosis

6. Software update and upgrade

7. Spare parts and accessories

8. Training and technical consultation

MAIN PRODUCTS:

PP strapping, PET packing belt,PP/PET strap making machine, PE stretch film, transparent tape, Semi-automatic/Automatic strapping machines, handheld electric strapping tools, pneumatic strapping tools, high-speed strapping machines, etc.

Currently, we have four of our own production plants with strong production capacity.

PET/PP strap making machine manufacturing plant: 1 pcs

PET strapping manufacturing plant: 1 pcs

PP strapping manufacturing plant: 1 pcs

Automated equipment factory: 1 pcs

We have a professional team in sales, production, management, R&D, quality control, and after-sales service. We can ensure product quality and fast delivery. In addition, we also provide product customization services; welcome to inquire and discuss business at any time.

FAQ:

Q: What is the voltage of the PET plastic steel belt equipment?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the PET strap making machine?

A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H

Q: What is the producible width of the PET plastic steel belt equipment?

A: 9-32mm

Q: Can the PET plastic steel belt equipment be customized?

A: Customization supported

Q: Where does the PET plastic steel belt equipment come from?

A: China.

Q: What are the certifications for the PET plastic steel belt equipment?

A: ISO CEO certification.

Q: What is the minimum order quantity for the PET plastic steel belt equipment?

A: 1 set

Q: What is the weight of the PET plastic steel belt equipment?

20T, 40GP container * 3PCS
