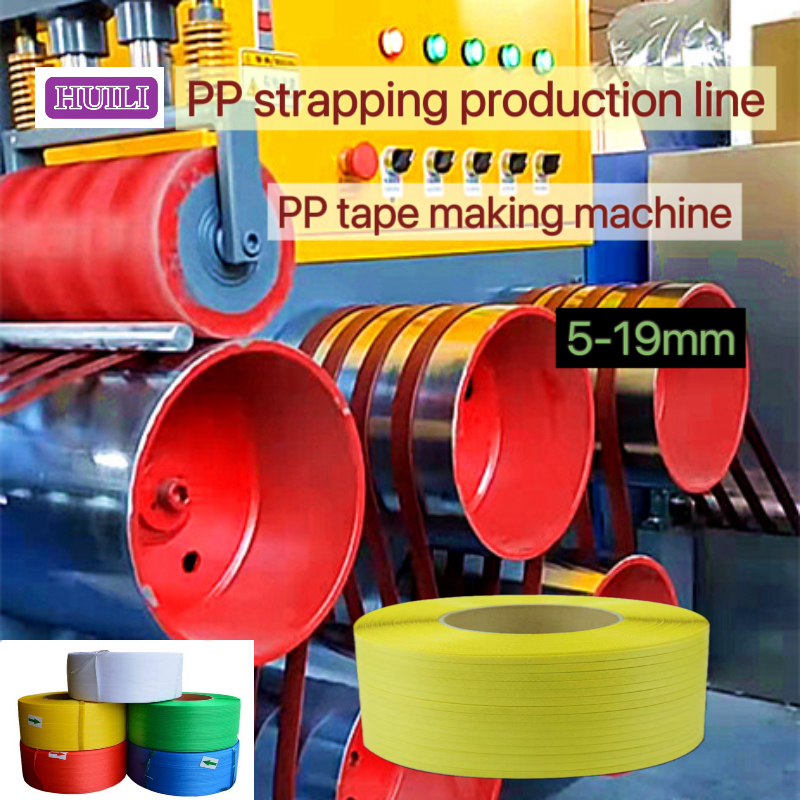

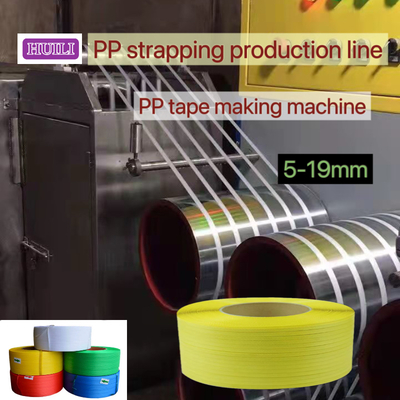

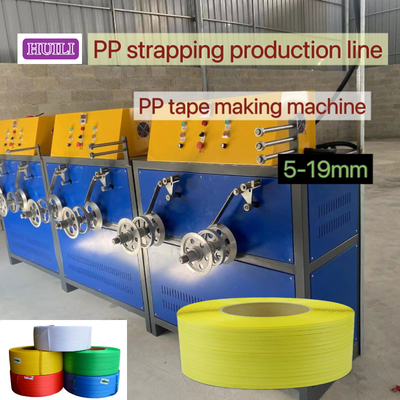

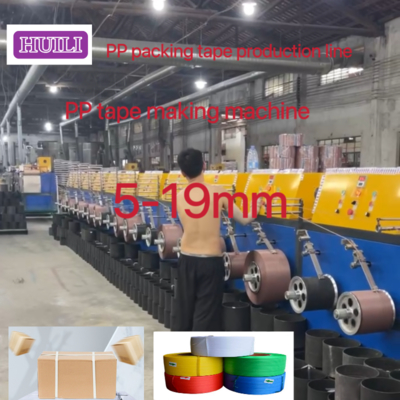

PP packing strap making machine Twin screw sandwich PP strapping belt equipment PP Extrusion Machine
Description of PP packing strap making machine:
pp packing strap making machine
This pp packing strap making machine is used to produce fully automatic PP strapping and manual PP strapping for packaging.
The strap width is 5 ~ 19mm and the thickness is 0.4 ~ 1.2 mm.
The extrusion screw material of the PP strapping equipment is 38CrMoALA, and the metering extruder is particularly suitable for the production of high-end PP strapping. The extruder adopts a hopper-type automatic feeding system to make the performance of the extruder more stable. All units are driven by variable frequency motors and automatic intelligent temperature control systems to achieve energy-saving effects.
Features:
High-quality and durable strapping equipment----sturdy and durable
Siemens motor, excellent performance, energy-saving and environmentally friendly---Matched Siemens motor
Guomao reducer, stable operation, low failure rate---Guomao reducer
High-speed transmission chain, high tensile strength, low noise---chain transmission
Special screw for extruder, uniform plasticization---Zhoushan screw
Automatic screen changer, 24-hour non-stop production---automatic screen changer
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Working process of PP strapping equipment:
1. PLC control----
Adopting PLC control system, unique built-in memory parameters, the same product does not need to be debugged multiple times.
2.Automation--------
PP strapping tape production line has a high degree of automation, does not require multiple manual operations, easy and simple.
Applicable to balers:
1. Fully automatic baler
2. High-speed baler
3. Semi-automatic baler
4. Handheld electric baler
5. Manual clamp baler
Installation and commissioning service:
When the contract PP equipment is installed, the seller's technical personnel will arrive at the buyer's installation site to provide guidance services.
The seller's relevant engineering and technical personnel are responsible for the installation and commissioning of the contract production equipment, trial production process, qualified inspection of finished products, and on-the-job training of production line workers.
The seller's relevant engineering and technical personnel are responsible for the analysis and proportion of various raw material formulas of the contract production equipment,
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
