Description of pet strapping band making machine:
pet strapping band making machine
PET strapping band making machine is a special equipment for producing polyethylene terephthalate (PET) plastic strapping tape, which is widely used in logistics, packaging, building materials, papermaking and other industries.
Components of pet strapping band making machine:
Extruder---- heat and melt the PET raw materials (granules or recycled materials) and extrude them through screws.
Mold (die head)----- The molten PET is formed into a strip through the mold, and the width and thickness are adjustable.
Cooling water tank---- Rapidly cool and shape the high-temperature strip PET.
Stretching system---- Improve the strength and toughness of the strapping tape by heating and bidirectional stretching (longitudinal/transverse).

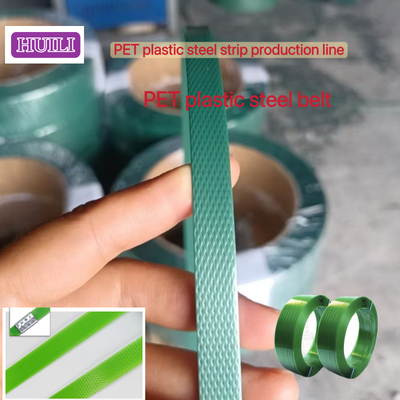

Embossing roller---- Press the pattern on the belt surface to increase friction and aesthetics.

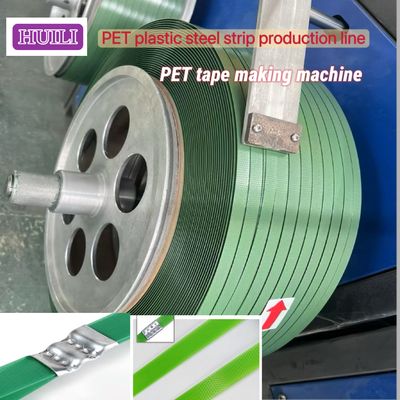

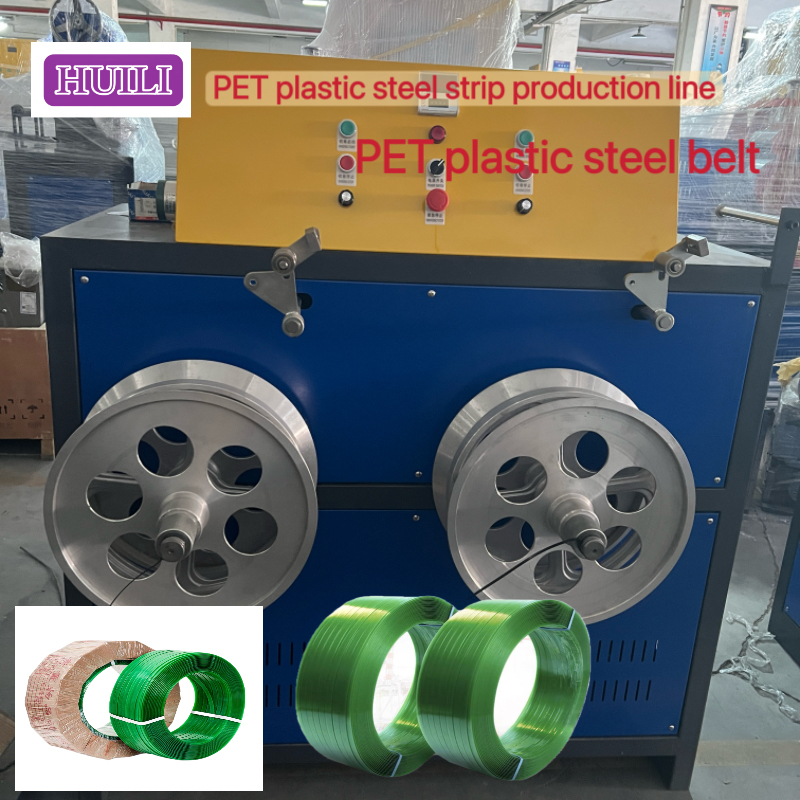

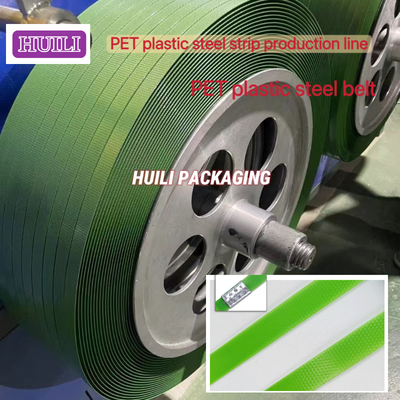

Winder----- Wind the finished strapping tape into a roll, which can be equipped with automatic roll changing function.
Control system----- PLC or computer control, adjust parameters such as temperature, speed, tension, etc.
Raw materials-------
100% recycled bottle chips are used as raw materials, which are directly melted,which reduces the process of raw material manufacturing
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
After-sales service
PET strapping band making machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET strapping band making machine.
2. Analysis of finished product manufacturing costs of PET strapping band making machine.
3. Analysis of raw materials used in PET strapping band making machine.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET strapping band making machine
2. Installation, commissioning and training of PET strapping band making machine
3. Maintenance service of PET strapping band making machine
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET strapping band making machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET strapping band making machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET strapping band making machine?
A: 9-32mm
Q: Can the PET strapping band making machinebe customized?
A: Customization supported
Q: Where does thePET strapping band making machine come from?
A: China.
Q: What are the certifications for the PET strapping band making machine
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET strapping band making machine?
A: 1 set
Q: What is the weight of the PET strapping band making machine?
20T, 40GP container * 3PCS
