PET plastic steel belt production line Single screw pet belt manufacturing equipment PET strapping belt
FEATURE DESCRIPTION OF PET PLASTIC STEEL BELT PRODUCTION LINE

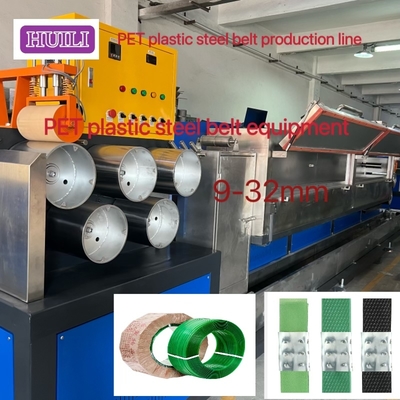

PET plastic steel belt production line
PET plastic steel belt production line (equipment used to produce or use PET plastic strapping) has the following characteristics:
1. Material characteristics
1. The extruder of the equipment adopts a special screw for PET, with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.
2. The three-dimensional folding ultra-large area filter device, the unfolded area of the filter is 30 times larger than the area of the traditional flat filter; the number of filtration meshes can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves work efficiency.
3. The rotary honeycomb dehumidification and drying system is used to dry the raw materials. The dew point of -50℃ ensures that the moisture content of the raw materials is ≤50PPM, and it also has a solid phase polycondensation and viscosity-increasing effect on the original.
PET strapping production line process flow

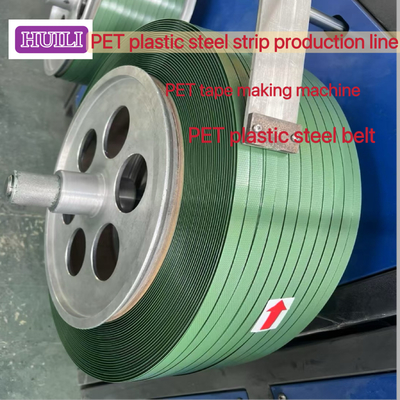

① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
FEATURES OF PET PLASTIC STEEL BELT PRODUCTION LINE
Screw--------
The screw of the PET plastic steel belt production line is made of 38CrMoALA material, a special screw for extruders, with good plasticization and uniform extrusion, ensuring the durability and long-term performance of the equipment
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |

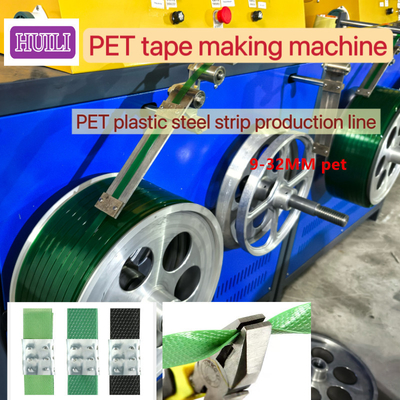

| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
PLC control system------
PET plastic steel strap production line adopts PLC control system, touch screen operation, easy debugging.
PET plastic steel strap production line adopts PLC microcomputer control system, simple operation, stable operation, can automatically memorize the production parameters of strapping straps of different specifications, and can memorize 99 different specifications at the same time, simple operation, stable operation.
PET high temperature melt pump:
The unique and dedicated PET high temperature melt pump controls the extrusion pressure and speed through a computer, optimizes the feeding process, feeds in an orderly manner, ensures a constant and stable extrusion speed, is easy to operate, reduces manual intervention, and saves manufacturing costs.
After-sales service
PET plastic steel strap production line provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel strap production line .
2. Analysis of finished product manufacturing costs of PET plastic steel strap production line .
3. Analysis of raw materials used in PET plastic steel strap production line .
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel strap production line .
2. Installation, commissioning and training of PET plastic steel strap production line .
3. Maintenance service of PET plastic steel strap production line .
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel strap production line ?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel strap production line ?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel strap production line ?
A: 9-32mm
Q: Can the PET plastic steel strap production line be customized?
A: Customization supported
Q: Where does the PET plastic steel strap production line come from?
A: China.
Q: What are the certifications for the PET plastic steel strap production line ?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel strap production line ?
A: 1 set
Q: What is the weight of the PET plastic steel strap production line ?
20T, 40GP container * 3PCS
