PLC PET Strap Making Machine Plastic Steel Belt Manufacturing Equipment 100-600Kg/H
Product Details
| Name: | PET Plastic Production Line | Strap Width: | 9-32 Mm |
|---|---|---|---|
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*180 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Line Speed: | 100-200 M/min | Automation: | Automation PET |
| Highlight |
600Kg/H PET Strap Making Machine,Plastic Steel Belt Manufacturing Equipment |
||
Product Description
PET plastic production line PET plastic steel belt equipment 100-600kg/h PET extruder
FEATURE DESCRIPTION OF PET PLASTIC PRODUCTION LINE
PET plastic production line
PET plastic production line (equipment used to produce or use PET plastic strapping) has the following characteristics:
PET plastic production line equipment fully meets environmental protection requirements. PET plastic steel belt can be produced using 100% waste mineral water, Sprite, Coke and other bottle flakes as raw materials.
PET plastic production line equipment is equipped with PLC computer control system control, which is used for real-time memory control of melt temperature, pressure, extrusion speed, torque, traction, etc. to ensure that the product quality is the same every time.
The equipment is equipped with two sets of shaping oven systems, one stretch shaping, two shaping shaping, etc. The equipment consists of: stirring part, feeding part, drying part, dehumidification part, main machine part, cooling part, extension part, shaping part, small traction part, large traction part, embossing part, winding machine, etc.
RAW MATERIALS
--------100% PET bottle flakes (hot water washing)
----------100% PET shreds (hot water washing)
FEATURES OF PET PLASTIC STEEL BELT PRODUCTION LINE
Screw--------
The screw of the PET plastic steel belt production line is made of 38CrMoALA material, a special screw for extruders, with good plasticization and uniform extrusion, ensuring the durability and long-term performance of the equipment
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PLC control system------
PET plastic steel strap production line adopts PLC control system, touch screen operation, easy debugging.
PET plastic steel strap production line adopts PLC microcomputer control system, simple operation, stable operation, can automatically memorize the production parameters of strapping straps of different specifications, and can memorize 99 different specifications at the same time, simple operation, stable operation.

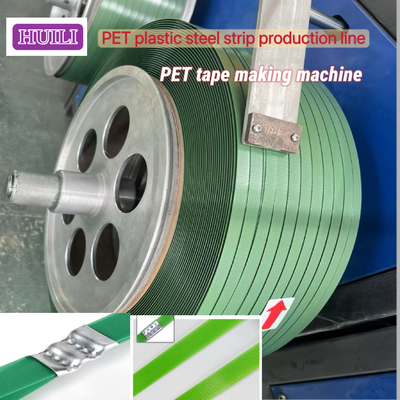

Finished PET plastic steel belt
After-sales service
PET plastic steel strap production line provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel strap production line .
2. Analysis of finished product manufacturing costs of PET plastic steel strap production line .
3. Analysis of raw materials used in PET plastic steel strap production line .
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel strap production line .
2. Installation, commissioning and training of PET plastic steel strap production line .
3. Maintenance service of PET plastic steel strap production line .
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel strap production line ?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel strap production line ?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel strap production line ?
A: 9-32mm
Q: Can the PET plastic steel strap production line be customized?
A: Customization supported
Q: Where does the PET plastic steel strap production line come from?
A: China.
Q: What are the certifications for the PET plastic steel strap production line ?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel strap production line ?
A: 1 set
Q: What is the weight of the PET plastic steel strap production line ?
20T, 40GP container * 3PCS
