100% PP polypropylene strapping equipment PP strapping production line automatic PP strapping
PRODUCT DESCRIPTION OF PP STRAPPING BAND MAKING MACHINE

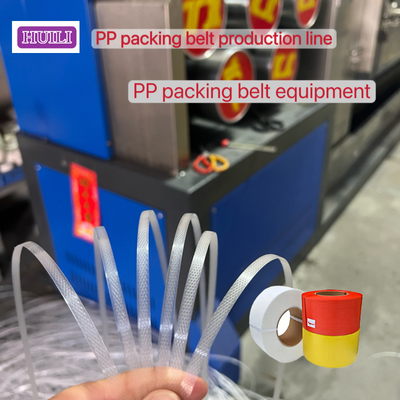

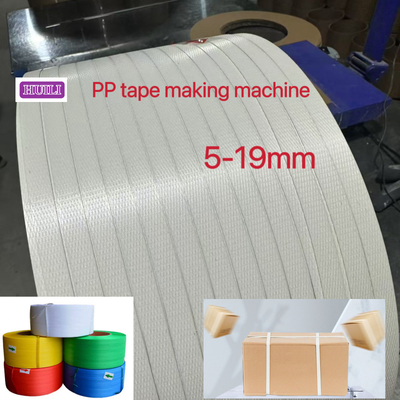

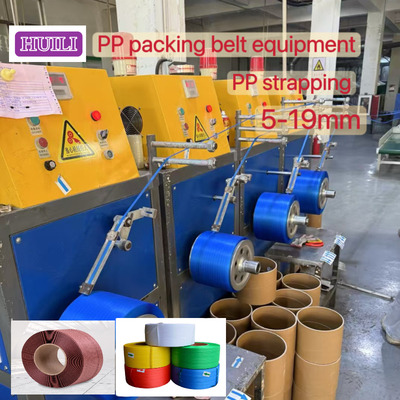

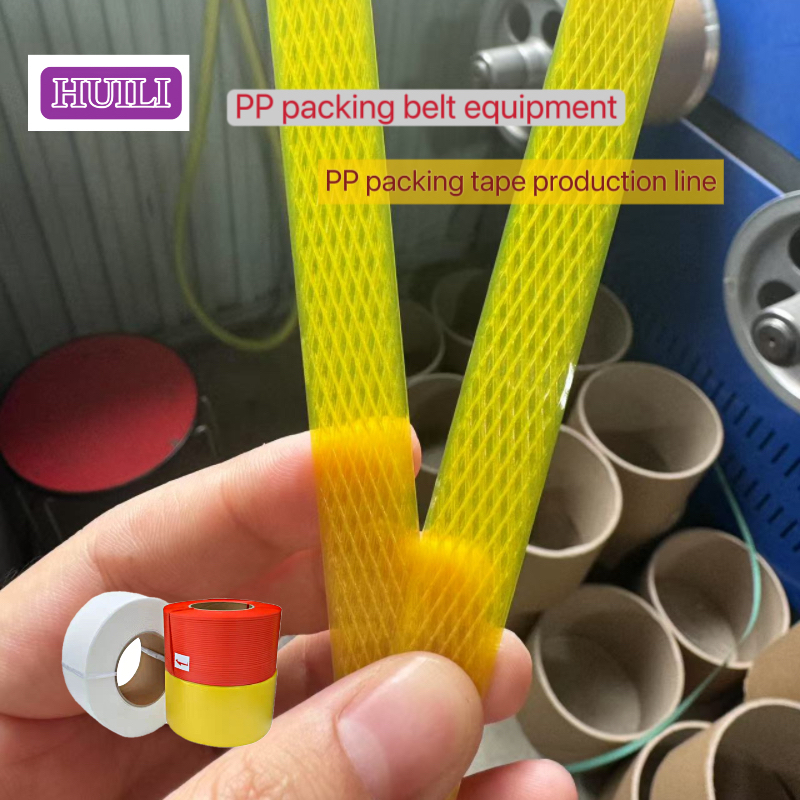

PP strapping band making machine
The main components of PP strapping band making machine:
Feeder---- transfer PP raw materials into the machine.
Extruder----heat and melt the PP raw materials and extrude them into shape.
Molding mold---- make the molten PP belt embryo pass through the mold to form a strip.
Cooling water tank----cool the extruded PP belt embryo to ensure its shaping.
Tractor----pull out the cooled strapping tape to maintain a stable production speed.
Oven---- heat the strapping tape to improve its strength and toughness.
Embossing machine---- emboss the surface of the strapping tape to increase friction and prevent slipping.
Shaping oven----heat again, shape, and make the PP belt more standardized.
Reeler---- reel the strapping tape into rolls for easy storage and transportation.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Differences between PP strapping equipment and PET plastic-steel strapping equipment:
1. PP strapping equipment uses raw materials: PP drawing-grade polypropylene, either virgin or recycled.
2. PET strapping equipment uses raw materials: pet crushed mineral water bottle flakes or shredded material.
3. The processes are completely different.
FAQ:
Q: What are the specifications that the PP strapping band making machine can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:Can the length of the PP strapping band making machine be customized?
A: YES
Q:What is the transaction method of PP strapping band making machine?
EXW ,FOB,CIF
