100-600KG/H PP strapping equipment PP strapping production line PP plastic strapping extrusion equipment
PRODUCT DESCRIPTION OF PP STRAPPING EQUIPMENT

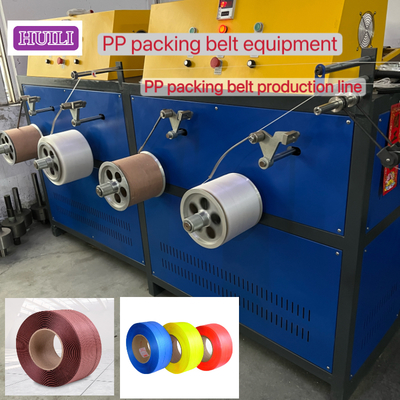

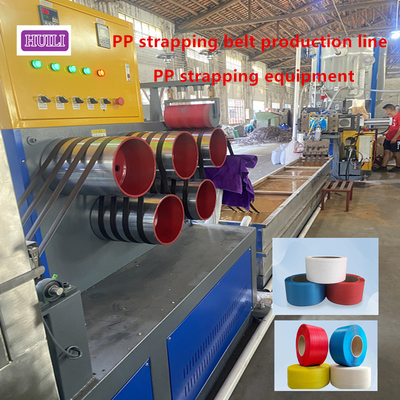

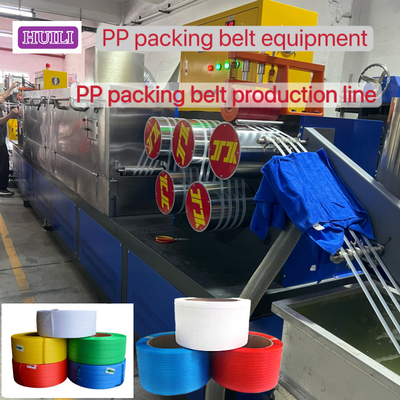

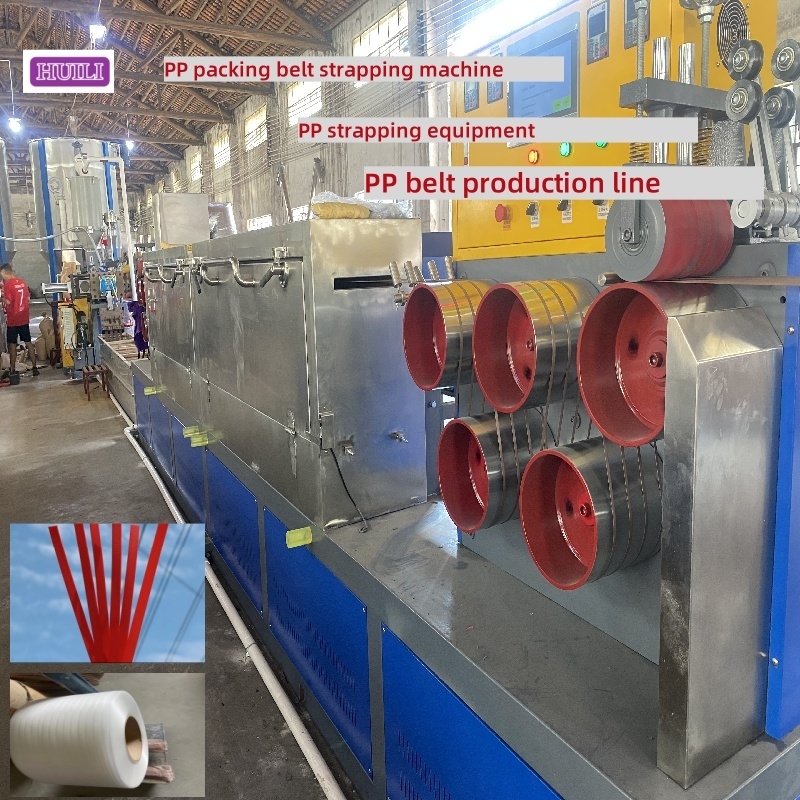

PP strapping equipment
High-Performance Equipment-----PP strapping equipment is a high-performance machine used to produce PP strapping. We provide comprehensive technical support and services to ensure our customers get the most out of their investment.
Raw Materials------PP strapping equipment uses new or recycled PP granules, resulting in low production costs and high demand.
High Precision------ Through continuous research, development, improvement, and upgrades, PP strapping equipment boasts advanced technology, resulting in a narrow tolerance and high precision, earning high praise from our customers.
About the automatic winding machine part:
The automatic winder uses a servo motor to arrange the wires, which is suitable for winding PP strapping belt with a width of 5-19mm. The corresponding bandwidth is selected through the PLC touch screen for winding and winding. The whole process does not require manual replacement of the transmission gear and belt slot.
After the whole roll of strapping tape is wound, the machine automatically stops, automatically replaces the paper tube, automatically cuts the PP strapping belt, fixes the strapping tape head with a clip, and automatically changes the roll for winding. The whole process is completed automatically.
The rewinding axis uses the torque mode control of the servo motor. The torque during winding can be set and debugged through the PLC touch screen, so that strapping tapes of different weights or widths can be wound with appropriate torque, and the bending deformation of the strapping tape after winding can be minimized.
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
FEATURES:
The PP strapping production line is an environmentally friendly, intelligent plastics machine.
The PP strapping production line can use both new and recycled PP materials.
The PP strapping production line is a high-speed, intelligent machine controlled by a PLC.
Applicable to balers:
1. Fully automatic baler
2. High-speed baler
3. Semi-automatic baler
4. Handheld electric baler
5. Manual clamp baler
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
