PET strap making machine 100% bottle flakes PET plastic steel strap production line PET plastic machinery
FEATURE DESCRIPTION OF PET STRAP MAKING MACHINE

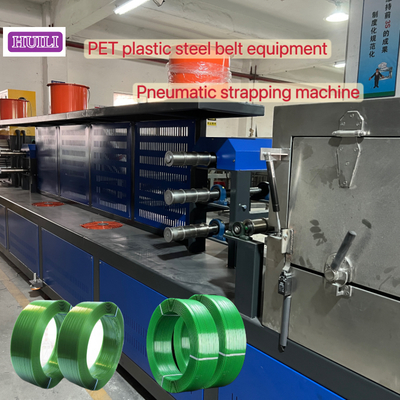

PET strap making machine

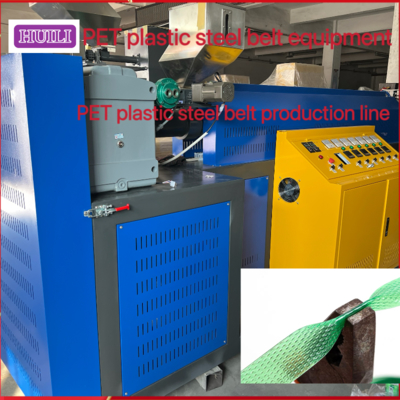

The PET strap making machine's extruder utilizes a dedicated PET screw with unique parameter design. This screw provides a unique separation and mixing effect, ensuring uniform plasticization of the raw material. It offers advantages such as high extrusion capacity, excellent plasticization, high hardness, and high wear resistance.
The PET strap making machine features a three-dimensional, foldable, ultra-large filter area. The expanded filter area is 30 times larger than that of traditional flat filters. The filter can reach 80 mesh, and the unique screen-changing device significantly reduces screen-changing time and improves work efficiency.
The PET strap making machine utilizes a rotary honeycomb dehumidification and drying system for raw material drying. A dew point of -50°C ensures a moisture content of ≤50 PPM, while also maintaining a viscosity-enhancing effect on the solid-phase polycondensation process.
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
HIGHLIGHTS--------
The five-roller traction system provides stable traction, ensuring smooth equipment operation, reducing failure rates, and lowering ongoing maintenance costs by 60%.
After-sales service
PET strap making machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET strap making machine.
2. Analysis of finished product manufacturing costs of PET strap making machine.
3. Analysis of raw materials used in PET strap making machine.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET strap making machine.
2. Installation, commissioning and training of PET strap making machine.
3. Maintenance service of PET strap making machine.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET strap making machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET strap making machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET strap making machine?
A: 9-32mm
Q: Can the PET strap making machine be customized?
A: Customization supported
Q: Where does the PET strap making machine come from?
A: China.
Q: What are the certifications for the PET strap making machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET strap making machine?
A: 1 set
Q: What is the weight of the PET strap making machine?
20T, 40GP container * 3PCS
