16mm Width PET Strap Production Line High Speed Plastic Strap Making Machine
Product Details
| Name: | PET Plastic Steel Strip Production Line | Strap Width: | 9-32 Mm |
|---|---|---|---|
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*180 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Elongation: | 5-20% | Drive: | Heat Saves Electricity |
| Highlight |
16mm Width PET Strap Production Line,PET Strap Production Line High Speed,High Speed Plastic Strap Making Machine |
||
Product Description
16mm width pet strap manufacturing machine high speed pet strapping production line
FEATURE DESCRIPTION OF PET STRAP MANUFACTURING MACHINE
pet strap manufacturing machine

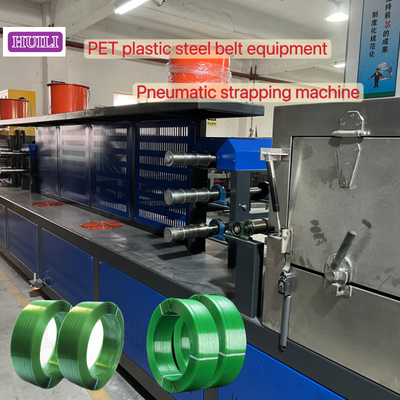

Five-roller traction machine—The five-roller traction system provides stable traction, ensuring smooth operation, reducing failure rates, and lowering maintenance costs by 60%.
Embossing wheel—SKD-11 material, featuring a custom-made, high-precision embossing and clamping mechanism with adjustable pressure, allowing the embossing wheel to move up and down synchronously. The embossing pattern is clear and beautiful, and the product quality rivals that of European, American, Japanese, and Korean strapping tape.

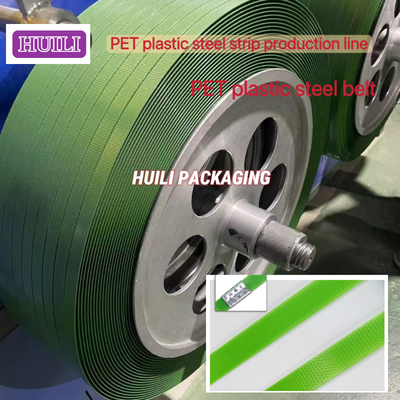

Winding machine—The constant-force winding system features unique design parameters, meeting high production requirements and delivering superior winding performance.
Raw material—Can be produced entirely from 100% bottle flakes/shredded material.
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
Feeder Section
① Screw Feeder
Purpose: Mainly used to mix and transfer raw materials to the feed drum. The PET equipment has three feeders. Feeder No. 1 mainly feeds the horizontal mixer, Feeder No. 2 mainly feeds the drying drum, and Feeder No. 3 mainly feeds the main feed drum.
After-sales service
PET strap making machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of pet strap manufacturing machine.
2. Analysis of finished product manufacturing costs of pet strap manufacturing machine.
3. Analysis of raw materials used in pet strap manufacturing machine.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of pet strap manufacturing machine.
2. Installation, commissioning and training of pet strap manufacturing machine.
3. Maintenance service of pet strap manufacturing machine.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the pet strap manufacturing machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the pet strap manufacturing machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the pet strap manufacturing machine?
A: 9-32mm
Q: Can the pet strap manufacturing machine be customized?
A: Customization supported
Q: Where does the pet strap manufacturing machine come from?
A: China.
Q: What are the certifications for the pet strap manufacturing machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the pet strap manufacturing machine?
A: 1 set
Q: What is the weight of the pet strap manufacturing machine?
20T, 40GP container * 3PCS
