PET Strap Production Line 80 Mesh Chemical Fiber Filter PET Strapping Equipment

PET plastic steel strapping production line 80 mesh chemical fiber filter PET strapping equipment

FEATURE DESCRIPTION OF PET STRAP MANUFACTURING MACHINE

pet strap manufacturing machine

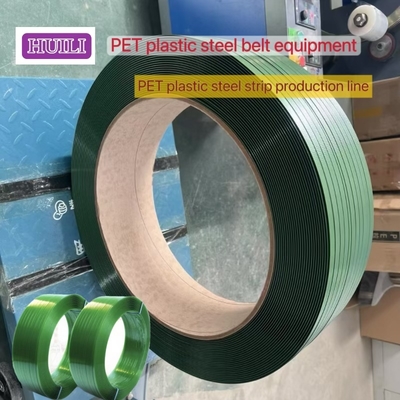

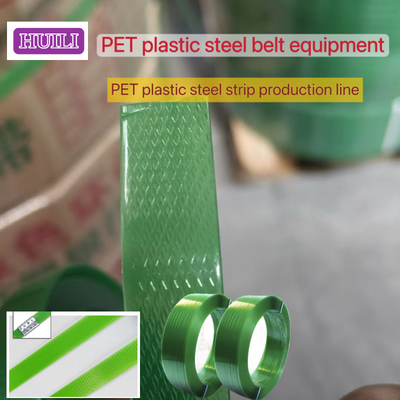

Features of PET Plastic-Steel Strapping:

PET strapping machine is an industrial equipment used to make polyethylene terephthalate (PET) strapping, which is widely used for packaging and strapping in various industries such as logistics, construction, steel, aluminum, chemical fiber, cotton spinning, etc.

PET strapping is a strong and environmentally friendly alternative to steel strapping and PP strapping, with its high tensile strength, flexibility and recyclability as its advantages.

PET plastic steel belt production line---Advantages:

1. Screw-----Use the special screw of PET extruder, the screw has a unique separation and mixing effect, which ensures the uniform plasticization of raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, high wear resistance, etc.

2. Dehumidification part-----Use honeycomb rotary dehumidification and drying system to dry raw materials, Japanese imported filter element, -50℃ dew point to ensure that the moisture content of raw materials is ≤50PPM, and it has solid phase polycondensation viscosity increasing effect on the original,

3. Filter net----Three-dimensional folding large area single cylinder filter device, the expanded area of the filter net is 30 times larger than the area of the traditional flat filter net; the filter mesh can reach 80 meshes, unique screen changing device, the filter net cover can be reused, saving manufacturing costs.

4. Stretching process----Use two high-speed stretching processes, the finished PET belt has good rigidity, consistent width and thickness dimensions, small error range, and improves the tensile strength of the finished PET belt.

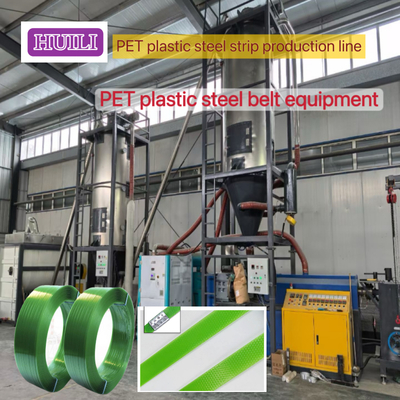

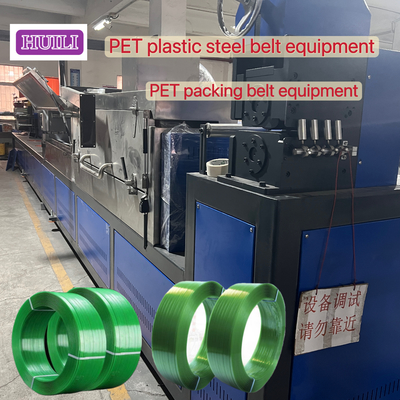

PET strapping production line process flow

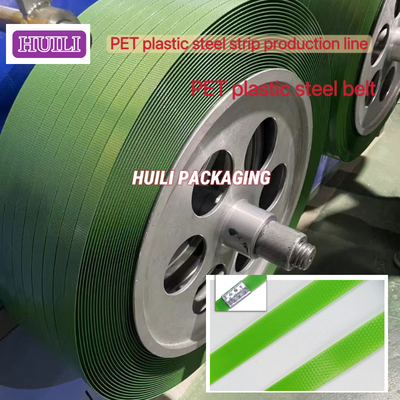

① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding

                     EXTRUSION PARAMETERS TABLE

Chemical fiber filter-----

     three-dimensional foldable large-area filter device, the expanded filter area is 30 times larger than the traditional flat filter area; the filter mesh can reach 80 meshes, and the unique screen changing device greatly reduces the screen changing time and improves work efficiency.

FAQ:

Q: What is the voltage of the pet strap manufacturing machine?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the pet strap manufacturing machine?

A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H

Q: What is the producible width of the pet strap manufacturing machine?

A: 9-32mm

Q: Can the pet strap manufacturing machine be customized?

A: Customization supported

Q: Where does the pet strap manufacturing machine come from?

A: China.

Q: What are the certifications for the pet strap manufacturing machine?

A: ISO CEO certification.

Q: What is the minimum order quantity for the pet strap manufacturing machine?

A: 1 set

Q: What is the weight of the pet strap manufacturing machine?

20T, 40GP container * 3PCS
