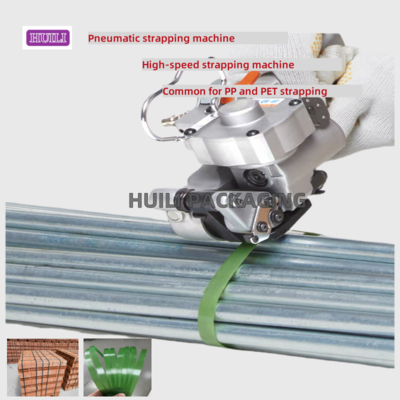

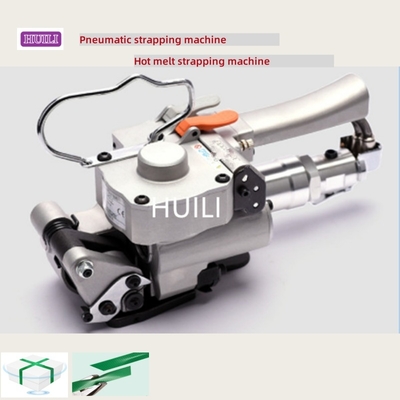

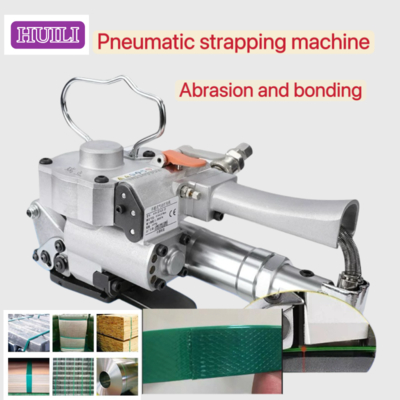

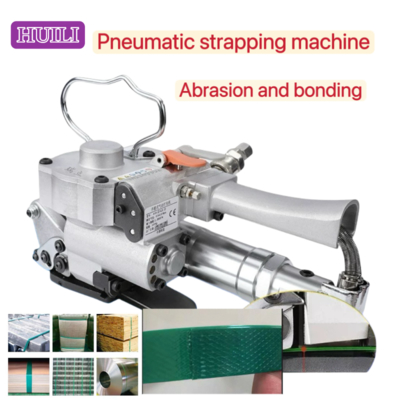

PP PET Strap Pneumatic Strapping Tool Handheld Friction Weld Strapping Machine 0.5-0.8MPa
Product Details
| Name: | Pneumatic Strapping Machine | Bonding Method: | Hot Melt Bonding |
|---|---|---|---|
| Applicable Packing Belt: | PET PP | Width Of Packing Tape: | 13-25mm |
| Thickness Of Packing Tape: | 0.5-1.5mm | Maximum Tension: | 3500N |
| In-band Mode: | Upper And Lower Belt | Machine Size: | L280xW160xH180 Mm |
| Sealing Type: | Friction Weld | Pressure: | 0.5-0.8 MPa |
| Highlight |
PET Strap Pneumatic Strapping Tool,PP Strap Friction Weld Strapping Machine,0.8MPa Pneumatic Strapping Tool |
||
Product Description
PP and PET pneumatic strapping machine handheld electric strapping machine high-speed packaging machine
DESCRIPTION OF PNEUMATIC STRAPPING MACHINE
Pneumatic Strapping Machine
Main Components
Main Body------Made of high-strength aluminum alloy or steel, it is durable and can withstand high strapping tension.
Air Motor-------The core power source of the machine, converting compressed air energy into mechanical energy to tighten the strapping strap.
Tensioning System------Driven by the air motor, the strapping strap is tightened at high speed through a gear or friction wheel mechanism.
Parameters of pneumatic baler
| Item | Product Name |
| Name | Pneumatic strapping machine |
| Color | Metallic Ash |
| In-band Mode | Upper and lower belt |
| Maximum Tension | 3500N |
| Width Of Packing Tape | 13-25mm |
| Thickness Of Packing Tape | 0.5-1.5mm |
| Applicable Packing Belt | PE,PET |
| Form Of Sealing Tape | Friction Welding |
| Applicable Air Pressure | 05.-0.8Mpa |
| Machine Weight | 3.8kg |
| Machine Size | L280xW160xH180mm |
Common for PP and PET strapping
Working Principle
1. Threading-----The operator threads the strapping tape around the packaged item and passes the tape head through the machine's guide slots and pressure plate.
2. Tensioning----- Pressing the trigger activates the pneumatic motor, which activates the tensioning system, tightening the strapping tape with extreme force, securing the package securely. The tightening force can be controlled by adjusting the air pressure or a regulating valve on the machine.
3. Bonding----- When the preset tension is reached, the machine automatically triggers the bonding process. Upper and lower friction plates or heated blades press the overlapping portions of the strapping tape together, melting and bonding them through friction or heat.
4. Cutting------ Once bonding is complete, the cutter automatically extends to cut off the excess strapping tape, completing one strapping cycle.
5. Reset------Once all operations are completed, the machine automatically resets and prepares for the next product packaging cycle.
FAQ:
Q1: What is the power supply of the pneumatic strapping machine?
A: 220V 50Hz power supply, equipped with replaceable lithium battery.
Q2: How do I choose the right specifications?
A: We offer a variety of models covering a variety of working ranges, multiple battery sizes and different price ranges.
Q3: How long is the delivery time?
A: Standard models are in stock or spare parts can be prepared within 3-7 days.
Q4: What is the warranty period and after-sales service?
A: Warranty for the whole machine: 6 months, excluding wearing parts.
Q5: What is your payment method?
A: LC, TT, specific negotiable/
Q6: How do you pack?
A: Carton packaging, with fixed packaging boxes.
Q8: Are you a manufacturer? What is the product range?
A: Yes. We have a factory specializing in the production of pallet wrappers or strapping machines. Products include electric and pneumatic strapping tools, manual strapping tools, high-speed strapping tools, etc.
