High-speed twin-screw PP cored strapping equipment 5-19mm PP strapping production line
PRODUCT DESCRIPTION OF PP STRAPPING BAND MAKING MACHINE

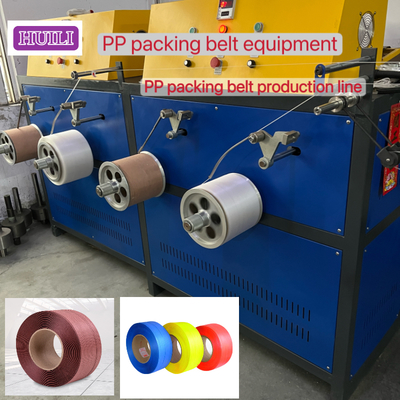

PP strapping band making machine
Main Components:
Extruder------ Heats and melts PP raw material (polypropylene pellets or recycled material) and extrudes it into a shape through a screw.
Extrusion Die------ Molten PP passes through a die to form a strip, which determines the width and thickness of the strapping tape.
Cooling Water Tank: Rapidly cools and shapes the hot strip, ensuring its strength and surface smoothness.
Stretching System------- Longitudinally stretches the strip using multiple sets of heated and pulling rollers (a hot stretching process), increasing its tensile strength and toughness.
Embossing Device--------- Imprints patterns or logos on the strip surface, increasing friction and aesthetics.
Reel: Winds the finished strapping tape into a roll, typically equipped with automatic roll-changing and cutting functions.
Raw Materials
-----100% polypropylene (PP) virgin pellets or recycled material
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Screw-----
The screw of the PP strapping production line is made of 38CrMoALA material, which is a special screw suitable for extruders. It has good plasticizing and uniform extrusion performance, ensuring the durability and long-term performance of the equipment.
ABOUT US:
We are committed to providing customers with complete, integrated, one-stop solutions for plastic strapping production and investment, offering timely, professional, and effective service. Our products have been successfully marketed to countries and regions such as Southeast Asia and Europe, earning high praise from our customers. We have established long-term partnerships with numerous major domestic companies, providing customers with high-quality products. We have an experienced team of technical managers, sales, R&D, after-sales, and production personnel. We continuously research and develop improvements to standardize and streamline every step of our strapping production process, ensuring customers experience ease of operation, high production capacity, low energy consumption, and high quality. Our strapping equipment is manufactured and used in-house before exporting, and our products have received widespread acclaim domestically.
FAQ:
Q:What is the voltage of PP strapping band making machine?
A:380V/50HZ, we support customization
Q:Can the PP strapping band making machine be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping band making machine?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
