300KG/Roll PET Plastic Steel Belt Production Line 9-25mm PET Strap Production Equipment
Product Details
| Name: | PET Plastic Steel Strip Production Line | Strap Width: | 9-32 Mm |
|---|---|---|---|
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*180 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Highlight |
300KG/Roll PET Strap Production Equipment,25mm PET Strap Production Equipment |
||
Product Description
300KG/roll PET plastic steel belt production line 9-25mm PET production equipment
DESCRIPTION OF PET STRAP MANUFACTURING MACHINE
pet strap manufacturing machine
The pet strap manufacturing machine is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process involving melting, extrusion, stretching, shaping, and winding. PET plastic strapping, due to its high strength, corrosion resistance, aesthetic appeal, and recyclability, is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials.
Features:
This Ppet strap manufacturing machine fully complies with environmental protection requirements. PET plastic-steel strapping can be produced using 100% recycled bottle flakes from mineral water, Sprite, and Coke bottles.
The pet strap manufacturing machine is equipped with a PLC computer control system, which provides real-time memory control of melt temperature, pressure, extrusion speed, torque, and traction, ensuring consistent product quality every time.
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||

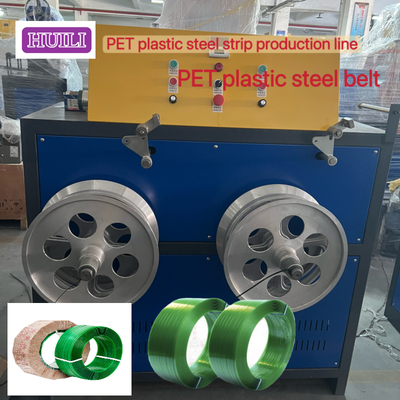

| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
MAIN COMPONENTS
The PET plastic-steel strip production equipment is equipped with two shaping oven systems, including a primary stretching and shaping system and a secondary shaping and shaping system. The equipment consists of a mixing unit, a loading unit, a drying unit, a dehumidification unit, a main unit, a cooling unit, a stretching unit, a shaping unit, a small haul-off unit, a large haul-off unit, an embossing unit, and a winder.
Filter------
A three-dimensional, foldable, single-cylinder filter with a large surface area. The expanded filter area is 30 times larger than that of traditional flat filters. It can filter up to 80 meshes, and the unique screen changing mechanism allows for reusable filter covers, reducing manufacturing costs.

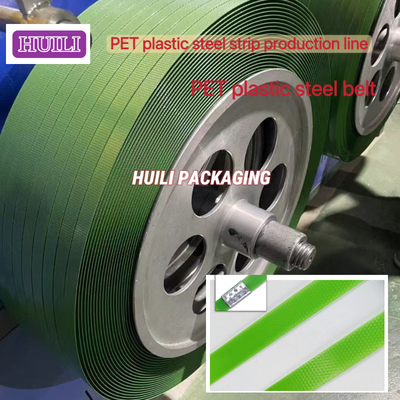

Finished PET plastic steel belt:
After-sales service
pet strap manufacturing machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of pet strap manufacturing machine
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of pet strap manufacturing machine.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of pet strap manufacturing machine.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the pet strap manufacturing machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the pet strap manufacturing machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the Ppet strap manufacturing machine?
A: 9-32mm
Q: Can the pet strap manufacturing machine be customized?
A: Customization supported
Q: Where does the pet strap manufacturing machine come from?
A: China.
Q: What are the certifications for the pet strap manufacturing machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the pet strap manufacturing machine?
A: 1 set
Q: What is the weight of the pet strap manufacturing machine?
20T, 40GP container * 3PCS
