High-efficiency handheld electric strapping machine automatic strapping tool for PP PET strapping bands
DESCRIPTI OF PP PET HANDHELD ELECTRIC STRAPPING MACHINE

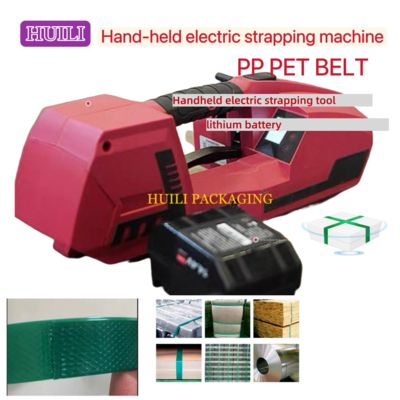

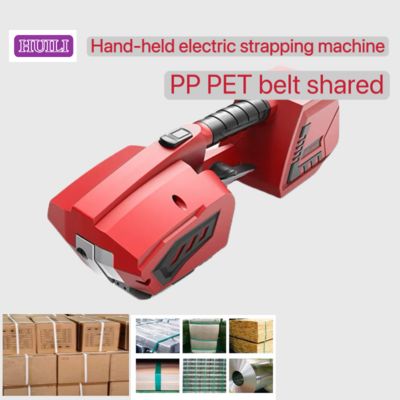

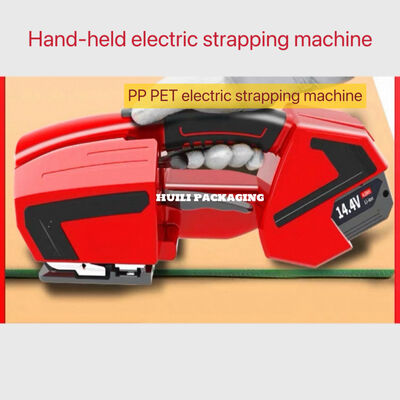

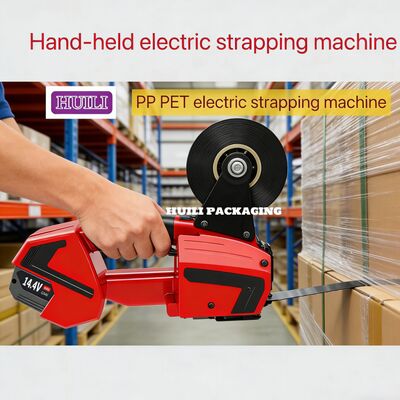

Handheld electric strapping machine
Handheld electric strapping machine is a portable and efficient industrial strapping tool. Powered by electricity, it automatically performs the processes of tightening, sealing (or locking), and cutting the strapping band, thus replacing traditional manual or semi-automatic strapping tools.
Functional Description:
Upon completion of the bonding action with PP or PET strapping bands, the pneumatic strapping machine automatically severs the excess tail end of the strapping band, separating it from the joint.
MACHINE PARAMETERS
| Name |
Handheld Electric Strapping Machine |
| Strapping Type |
PP PET belt |
| Strapping belt width |
11-19mm |
| Strapping belt thickness |
0.4-1.2mm |
| Tightening force |
0-3200N(Adjustable) |
| Interface type |
Friction hot melt bonding |
| Battery capacity |
40.A/h 50/60hz 75w |
| Suitable voltage |
100-230V |
| Machine size |
380*130*130mm |
| Charging time |
90 min |
| Machine weight |
4.0kg |
| Carton size |
400*140*150mm |
Key Points for Use and Maintenance:
Standard Operating Procedure: Includes threading the strap → tightening → welding → cutting. After welding, wait briefly before removing the machine to ensure the welded joint cools and solidifies properly.
Battery Maintenance: Avoid over-discharging the lithium battery; charge it promptly when the battery level is low. If not in use for an extended period, remove the battery from the machine and store it separately. Use the original charger for charging and pay attention to the ambient temperature.
Daily Inspection and Cleaning: Regularly clean dust and debris from the machine surface to prevent them from entering the interior. Check the wear of consumable parts such as friction pads and replace them as needed.
.
Key Features and Advantages
High Efficiency
Pneumatic strapping machines operate at exceptional speeds, typically completing a full cycle of tensioning, bonding, and cutting within 1-2 seconds. This significantly enhances production efficiency in assembly line operations and bulk packaging.
High Strapping Force and Robustness
Utilising pneumatic motors and cylinders, it generates substantial and consistent tension force, far exceeding manual tightening strength. The heat-sealed joint achieves 50%-80% of the strap's tensile strength, delivering exceptional reliability—particularly suited for heavy goods requiring high-strength securing.
FAQ:
Q: How many batteries does the handheld electric baler have?
A: Normally 1, 2-3 can be selected according to demand
Q; Is the handheld electric baler suitable for PP PET strapping belt?
A: The same machine can be used for 2 types of PP PET strapping belts, and the spring needs to be replaced. The tightening force is different, and the selected spring is also different.
Q: Is the handheld electric baler suitable for air transportation?
A: Yes, we have test data
Q: Does the handheld electric baler have a warranty?
A: Warranty time: 12 months
Q: Where is the handheld electric baler made?
A: China, FE/CO certificate of origin can be provided
Q: What are the specifications suitable for the handheld electric baler?
A: PP PET Strapping belt width: 11-19mm
Q: MOQ?
A: 1 PCS
