PP Strap Making Machine 5mm Single Screw / Double Screw PP Polypropylene Production Line PP Strapping Equipment
Product Details
| Name: | PP Strap Making Machine | Width: | 5-19 Mm |
|---|---|---|---|
| Thickness: | 0.3-1.2 Mm | Motor Power: | 37 KW |
| Production Capacity: | 110-600 Kg/ H | Control Mode: | PLC |
| Material: | PP | Environmental Protection: | YES |
| Embossing Wheel: | SKD-11 | Clear Pattern: | YES |
| Highlight |
PP strap making machine with single screw,PP polypropylene strapping production line,double screw PP strap extrusion machine |
||
Product Description
PP Strap Making Machine 5mm Single Screw / Double Screw PP Polypropylene Production Line PP Strapping Equipment
DRODUCT DESCRIPTION OF PP STRAP MAKING MACHINE:
PP Strap Making Machine
The PP Strap Making Machine is a high-end extrusion equipment with a dedicated screw for the extruder. It has uniform plasticization, consistent flow channels for the embryos, more complete shrinkage and shaping, more stable products, and more accurate dimensions
Working principle of PP polypropylene extruder:
The feeding section ---- feeds the PP polypropylene pellets through the hopper into the extruder.
Extrusion ---- screw is heated and rotated to melt and extrude the material.
Extrusion ---- extrudes the melted polypropylene strip blanks through the die to form the desired shape.
Cooling & Shaping ---- The extruded product is shaped and cooled by cooling water tank device.
Stretching ---- stretching oven heats the PP strip blanks and stretches them, ratio 1-10 times.
Shaping---Shaping oven will heat and shape the PP belt again to make the finished product specification more standard.
Winding ---- will wind the finished PP belt into rolls and put it into storage.
PP strapping band width: 5-19mm, thickness: 0.3-1.2mm..
6 straps -PP strapping equipment parameters
| Name | pp strap band extrusion line |
| Number of strips | 6 straps |
| Extrusion specifications | Width: 5-19mm, Thickness: 0.4-1.2mm |
| Material barrel | 200kg |
| Control system | PLC |
| Screw | ¢ 125*3700 mm |
| Screw feeder | 1 set |
| Motor power | 45(kw) |
| Screen changer | Automatic/Manual |
| Embossing machine | 1/2 sets |
| Winding machine: | Automatic/Manual |
| Total power of equipment | 120kw |
| Production capacity: | 400-450kg /h |
| Equipment voltage | three-phase 380v /50Hz (Support customization) |
| Container | 40GP*2pcs |
Introduction to the Stretching Process --- Key Highlights:
Core Process---- By applying a speed differential between two or more sets of stretching rollers (rear rollers operating at a higher speed than the front rollers), the cooled preform undergoes axial stretching (typically at a ratio of 3-8 times). This aligns the PP molecular chains, significantly enhancing the longitudinal strength and toughness of the strapping.
Supplementary Conditions: Some production lines incorporate preheating rolls prior to stretching, heating the stock to temperatures above its glass transition point (approximately 80-120°C) to enhance the stretching effect

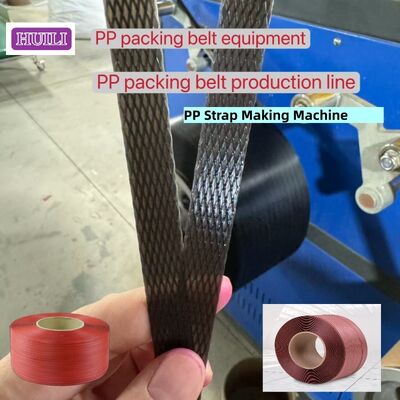

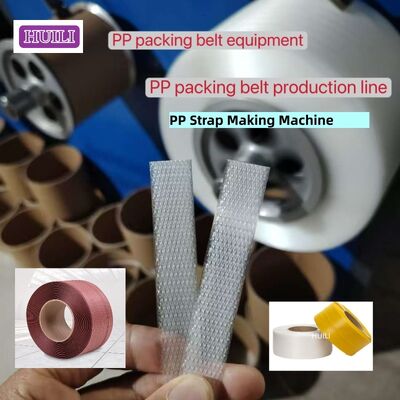

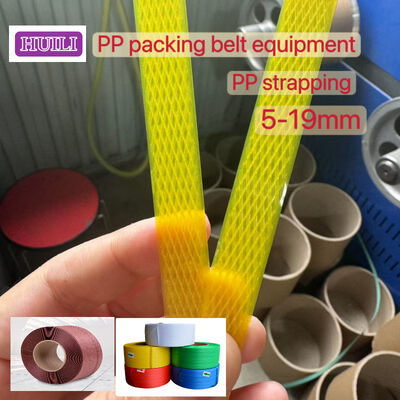

Finished PP strap display:
FAQ:
Q:What is the voltage of PP Strap Making Machine?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping band?
A: L:36 M.
Q:Where is the PP Strap Making Machine?
A:We are from China.
Q:Can PP Strap Making Machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP Strap Making Machine?
A:We have 30 years of manufacturing experience, and have their own PP Strap Making Machine plant, equipment quality is stable, the process is worth choosing.
Q:Does PP Strap Making Machine customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP Strap Making Machine look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
