PP strapping plastic machinery pp strapping band making machine High-speed strapping machine
Product Details
| Name: | PP Strapping Belt Equipment | Plastic Extruder: | PP |
|---|---|---|---|
| Width: | 5-19mm | Thickness: | 0.3-1.2mm |
| Production Capacity: | 110-600kg/ H | Control Mode: | PLC |
| Material: | PP | Environmental Protection: | YES |
| Automatic Winding Machine: | YES | Screen Changer: | Automatic Screen Changer |
| Highlight |
PP strapping band making machine,High-speed PP strapping machine,PP strap making machine with warranty |
||
Product Description
PP strapping plastic machinery pp strapping band making machine High-speed strapping machine
PRODUCT DESCRIPTION OF PP STRAPPING BELT EQUIPMENT:
PP strapping belt equipment

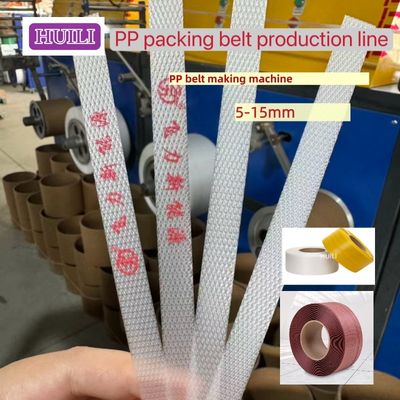

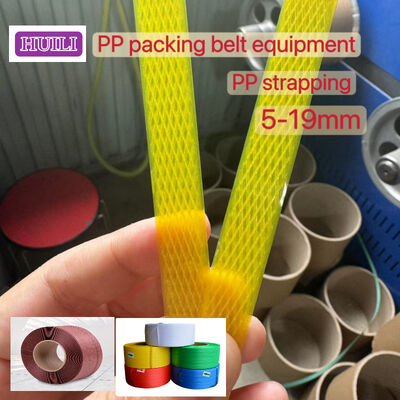

PP strapping belt, also known as polypropylene strapping belt, is a strapping tape made of polypropylene brushed resin as the main raw material. It has superior characteristics:
Good plasticity-----can be formed into various shapes and sizes as needed, width: 5-19mm, thickness: 0.3-1.2mm.
Strong breaking tensile force----has a high load-bearing capacity, suitable for various occasions that require packaging and fixing.
Bending resistance----will not easily break or damage even after multiple bending.
Low density----relatively light weight, easy to carry and use.
PP strapping belt is also very easy to use, so it is widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.
EXTRUSION PARAMETERS TABEL
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material | |||||
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 | |||||
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Drying barrel (kg) | 100 | 150 | 200 | 200 | 200 | 200 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
| Screen Changer | Automatic/Manua | |||||
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Main components

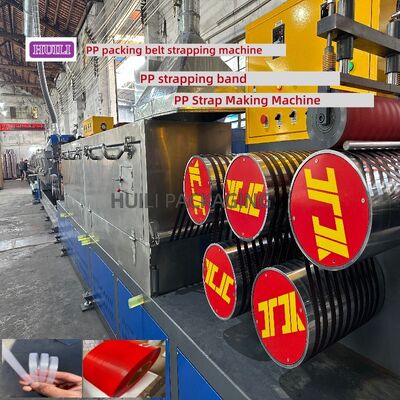

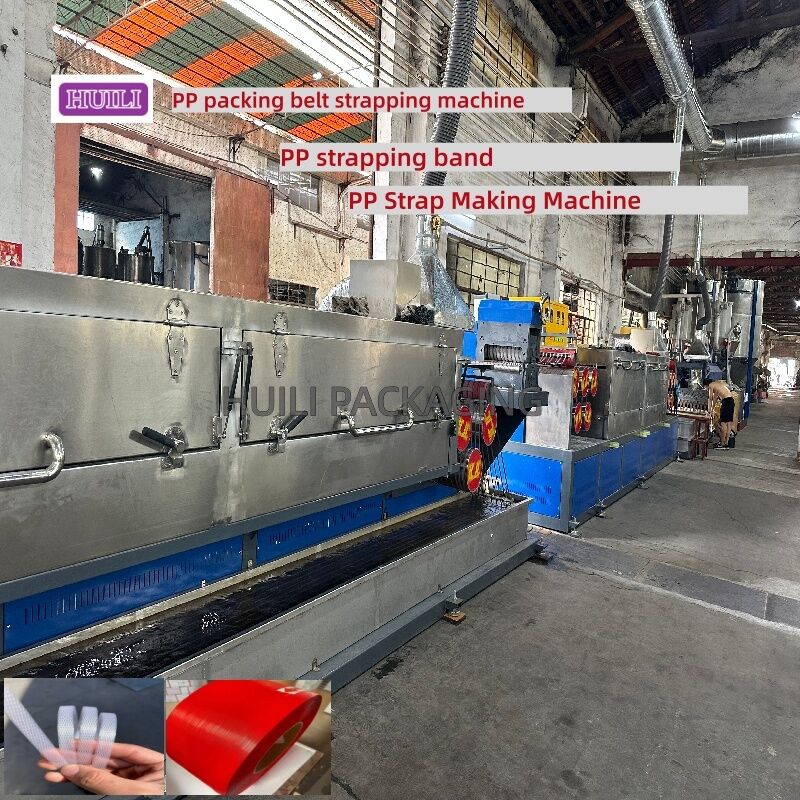

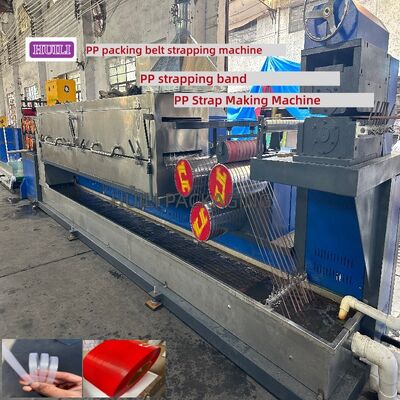

The PP strapping production line is mainly composed of the following parts:
Feeder--- transfers PP polypropylene raw materials to the machine barrel.
Extruder--- used for melting and extrusion of plastics.
Die head--- controls the molding of the extruded plastic strip.
Cooling water tank--- cools the extruded plastic strip.
Stretching oven--- ensures the stretching ratio of the strip and more uniform plastic molding.
Tractor: stretches the formed plastic.
Forming oven--- further ensures the stability of the shape of the plastic.

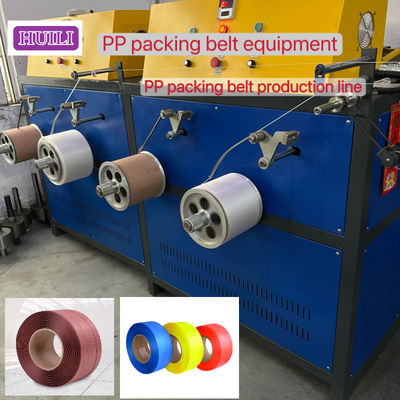

Winding machine---- winds the formed plastic strapping tape into rolls and puts it into storage.
PLC control system---- controls the entire machine, specification debugging, and parameter ratio setting.
PP strapping tape is suitable for baling machines:
Fully automatic strapping machine
Semi-automatic strapping machine
High-speed ultra-thin strapping machine
Handheld electric strapping machine
Manual strapping machine (iron buckle)
FAQ:
Q:What is the voltage of PP strapping belt equipment ?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP strapping belt equipment?
A:We are from China.
Q:Can PP strapping belt equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping belt equipment?
A:We have 30 years of manufacturing experience, and have their own PP strapping belt equipment plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping belt equipment customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping belt equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
