16mm PET Strap Extrusion Machine Plastic Steel Strap Production Line With Pneumatic Baler
Product Details
| Name: | PET Plastic Steel Strip Production Line | Strap Width: | 9-32 Mm |
|---|---|---|---|
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*180 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Highlight |
16mm PET Strap Extrusion Machine,Pneumatic Baler PET Strap Extrusion Machine |
||
Product Description
16mm PET plastic steel strap PET plastic steel strap production line suitable with pneumatic baler
FEATURE DESCRIPTION

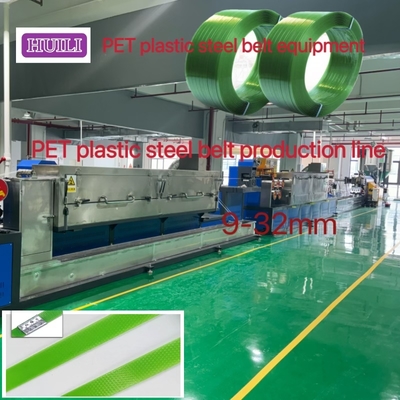

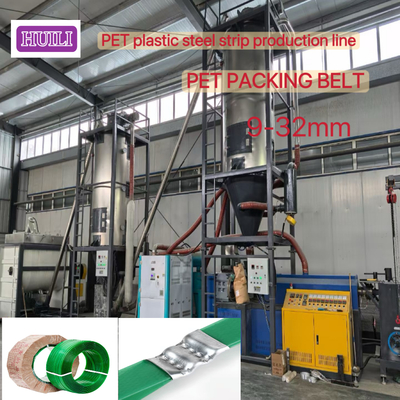

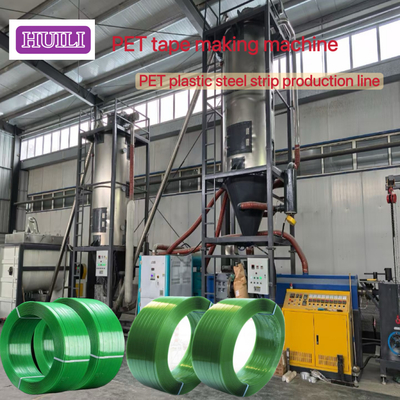

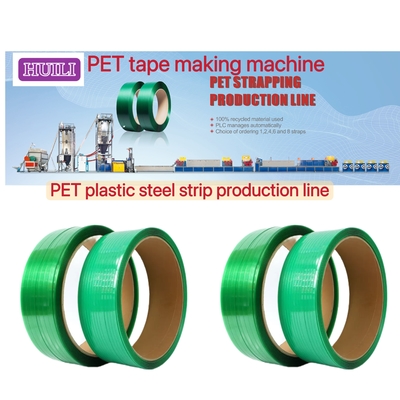

PET plastic steel strip production line
PET strapping machine is a kind of equipment used to produce PET plastic strapping belt, which has the following characteristics:
Efficient production---- high degree of automation, fast production speed, can quickly meet large-volume demand. , Producible width: 9-32mm
Energy saving and environmental protection----using advanced technology, constant temperature extrusion system, low energy consumption, high output.
Easy operation----PLC automatic control system makes operation simple and reduces manual intervention.
Features:
Fully automatic production line: fully automated from raw materials to winding, automatic winding machine, no manual operation required.
Semi-automatic production line: PLC control system, winding part requires manual operation, suitable for small and medium-sized enterprises.
Dedicated production line: customized dedicated PET strapping tape production line according to the requirements of PET strapping belt.
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET plastic steel belt equipment raw materials:
This is an environmentally friendly and low-cost PET plastic steel packaging belt, made of: PET bottle flake material &PET broken material, width: 9-32mm, tension: 200-1000KG, can be customized according to customer requirements, including: color, tension, pattern, etc., PET packaging belt width range from 9mm-32mm.
PET plastic and steel packing belts are usually used to bind large products: steel, wood, paper, fiberboard, brickworks, glass and other industries.
Screw----The extruder of the PET plastic steel belt production line adopts a PET special screw with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.
Tools suitable for PET plastic steel strapping:
Pneumatic strapping machine
Electric strapping machine
Manual strapping machine
After-sales service
PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
