9-25mm PET Packing Strap Belt Making Machine With Chemical Fiber Filter
Product Details
| Name: | PET Plastic Steel Strip Production Line | Strap Width: | 9-32 Mm |
|---|---|---|---|
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*180 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Line Speed: | 100-200 M/min | Automation: | Automation PET |
| Highlight |
25mm PET Packing Belt Making Machine,Chemical Fiber Filter Strap Belt Making Machine |
||
Product Description
PET packing belt making machine 9-25mm pet belt making machine with chemical fiber filter
FEATURE DESCRIPTION
PET packing belt making machine
PET packing belt making machine (equipment used to produce or use PET plastic strapping) has the following characteristics:
1. Material characteristics
1. Raw materials----100% recycled bottle chips are used as raw materials, which are directly melted,which reduces the process of raw material manufacturing.
2. Multiple specifications----can produce PET belts of different widths from 9 to 32 mm, machine strapping belts, manual strapping belts, etc., to achieve multi-purpose use of one machine and save costs.
3. High quality-----High quality PET belt making machine, the finished PET belt produced has the same transparency as new polyester chips, but with stronger tensile strength and shock resistance

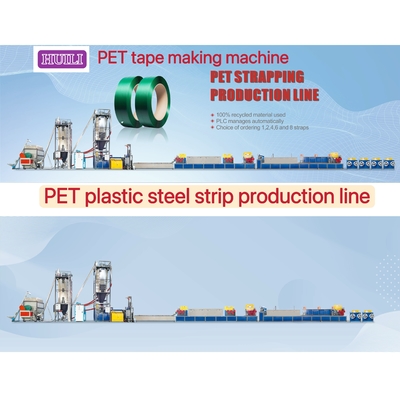

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET strapping production line is a high-speed, intelligent and environmentally friendly plastic equipment with the following advantages:
Raw materials-----
PET plastic steel belt can use raw materials: bottle flakes or crushed materials or thickening granular materials
PET high temperature melt pump:
The unique and dedicated PET high temperature melt pump controls the extrusion pressure and speed through a computer, optimizes the feeding process, feeds in an orderly manner, ensures a constant and stable extrusion speed, is easy to operate, reduces manual intervention, and saves manufacturing costs.
After-sales service
PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
