PET plastic steel belt production line High-speed automatic 9-25mm PET belt making machine
FEATURE DESCRIPTION OF PET PLASTIC STRAP MAKING MACHINE

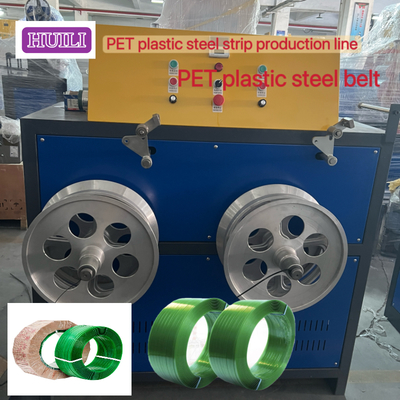

PET plastic strap making machine
PET plastic strap making machine (equipment used to produce or use PET plastic strapping) has the following characteristics:
FEATURES
Stretching------PET plastic steel belt production line adopts a unique two-time stretching process, the strip has good steeliness, stable width, and improved tensile strength of the finished product.
Components-----PET plastic steel belt production line adopts high-precision components to ensure stable product molding quality, and the fluctuations in width and thickness are far less than the national standard;
Oven-------PET plastic steel belt production line adopts a unique oven circulation heating system, and adopts a reciprocating winding method inside, which fully utilizes heat energy and greatly reduces power loss.

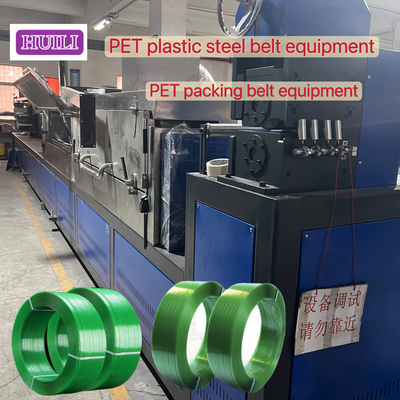

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Raw materials
------100% PET bottle flakes (bright color, strong transparency, high tensile strength, not easy to break)
Screw feeder-----
feeding is smoother and will not get stuck. It is suitable for PET bottle flakes and crushed materials..
After-sales service
PET plastic strap making machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic strap making machine .
2. Analysis of finished product manufacturing costs of PET plastic strap making machine .
3. Analysis of raw materials used in PET plastic strap making machine.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic strap making machine .
2. Installation, commissioning and training of PET plastic strap making machine .
3. Maintenance service of PET plastic strap making machine.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic strap making machin ?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic strap making machin ?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic strap making machin?
A: 9-32mm
Q: Can the PET plastic strap making machin be customized?
A: Customization supported
Q: Where does the PET plastic strap making machin come from?
A: China.
Q: What are the certifications for the PET plastic strap making machin ?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic strap making machin ?
A: 1 set
Q: What is the weight of the PET plastic strap making machin ?
20T, 40GP container * 3PCS
