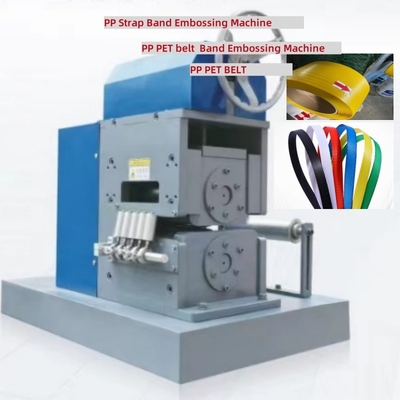

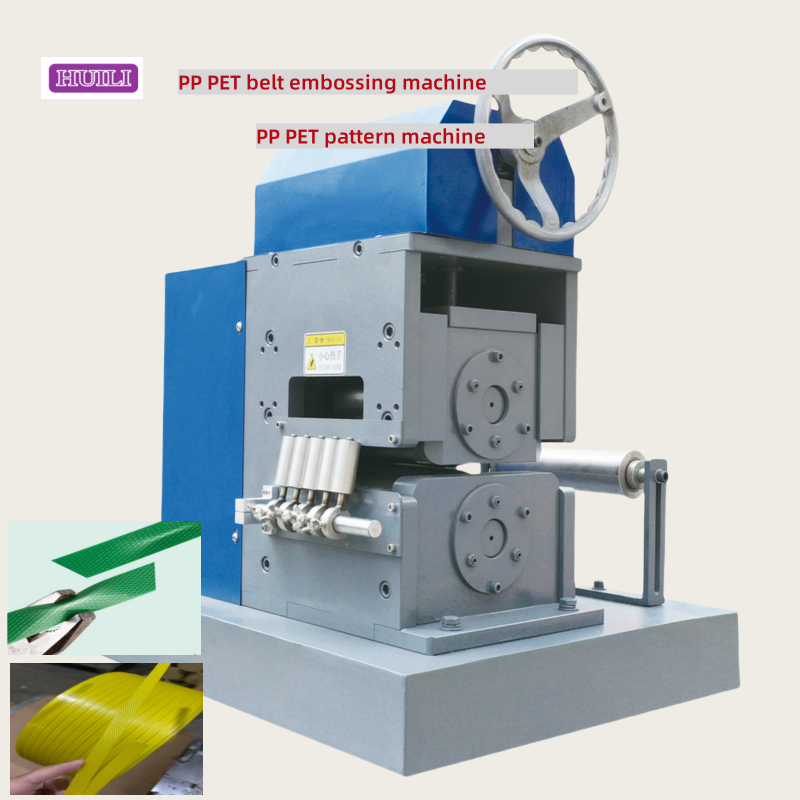

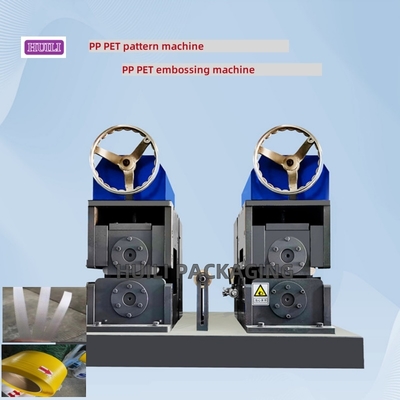

PP PET Strap Band Embossing Machine With SKD-11 Material Embossing Wheel

PP PET strapping plastic embossing machine SKD-11 material embossing wheel diamond pattern

DESCRIPTION OF EMBOSSING MACHINE

1. The embossing wheel consists of two wheels, the upper and lower wheels, with diamond patterns engraved on the surface, and synchronous gears installed on the upper and lower wheels to ensure synchronous rotation of the upper and lower wheels, ensuring that the patterns on both sides of the strapping tape are completely consistent, and increasing the beauty and transparency of the strapping tape.

2. The embossing wheel has been nitrided and heat-treated to achieve a surface hardness of 60 degrees, which is strong and durable. The strapping tape pressed out by this embossing machine has clear surface texture and enough roughness, and the automatic strapping machine uses the conveyor belt force

3. The embossing wheel uses the upper and lower pressures to instantly extrude the pattern on the surface of the PP strapping belt passing through here. Its function: to make the finished PP strapping tape have friction, which is not easy to slip when strapping with the strapping machine, and has stronger adhesion and is more solid.

                                                               TECHNICAL PARAMETERS

Production process flow:

①Raw materials →②Stirring raw materials →③Pre-drying raw materials →④Main machine melting raw materials-extrusion →⑤Cooling and forming the blank (strip blank) →⑥Oven heating and shaping →⑦First stretching →⑧Second stretching →⑨Embossed →⑩Oven tempering and shaping →⑪Cooling →⑫Finished product winding

Embossing wheel :

Finished pp strapping tape, pattern customization is supported,

After-sales service:

1. Confirmation of the embossing wheel size.

2. Pattern of the embossing wheel.

3. Analysis of the manufacturing cost of the embossing wheel.

4. Analysis of the raw materials used in the embossing wheel.

5. Provide circuit diagrams, installation drawings, etc.

6. Repair service for the embossing wheel.

7. Fault diagnosis

FAQ:

Q: What is the function of the embossing wheel?

A: Function: The surface of the PP PET strapping belt is embossed with patterns to increase friction and prevent the product from slipping when strapping.

Q: Is the embossing wheel suitable for use in other industries?

A: Negotiable.

Q: What is the material of the embossing wheel?

A: SKD-11.

Q: Is there a warranty for the embossing wheel?

A: Yes.

Q: Does the embossing wheel provide after-sales service?

A: Yes, online video/telephone installation guidance service is supported.

Q: Can the size of the embossing wheel be customized?

A: We are a manufacturing factory and can customize the model size according to customer requirements.
