PLC Controlled Strapping Band Winding Machine High Speed PP PET Strapping Winder
Product Details
| Name: | Automatic Winding Machine | Tape Width: | 5-25mm |
|---|---|---|---|
| Pressure: | 4-7kgf | PLC Control: | PLC |
| Power Single-phase: | 220V | Motor: | Servo Motor |
| Automatic Winding: | YES | Automatic Stop: | YES |
| Automatic Roll Change: | YES | Weight: | 650KG |
| Highlight |
PLC Controlled Strapping Band Winding Machine,PET Strapping Winder High Speed |
||
Product Description
PLC controlled automatic winding machine High speed PP PET strapping winding machine Servo motor controlled
Introduction to automatic winding machine:
Automatic winding machine, servo winding machine, is a wire machine for PP PET strapping belt, winding the whole body, the winding layer is flat.
After the PP PET automatic winding machine completes the winding, the strapping tape is automatically moved to the storage conveyor. The conveyor can hold about 3 rolls of strapping tape, and the conveyor belt can be lengthened according to customer needs. During the whole process, the PP strapping tape is wound and arranged without loosening or deformation.
FEATURES
Efficient Automation
Fully Automatic Operation-------Simply set the parameters and the machine automatically completes the winding, lifting, and tape breaking processes, significantly reducing manual intervention.
Smooth Winding-------- The winding speed is adjustable (typically 200-300 m/min), making it suitable for large-scale continuous operations. It improves efficiency 3-5 times compared to manual winding, reducing labor costs and saving costs.
One-Touch Start---------The PLC touch screen allows for one-touch operation, simplifying commissioning and switching, and reducing worker skill requirements.
PP Parameters of automatic winding machine
| Name | PP PET belt Automatic Winding Machine |
| Tape width | 5-19mm |
| Thickness | 0.4-1.2mm |
| Control mode | servo motor |
| Pressure | 4-7kgf |
| PLC control | YES |
| Paper tube | Ø200*180/190mm |
| Max weight | 10kg/roll |
| power single-phase | 220V |
| Weight | 650KG |
| Overall dimension | (L)1900mm*(W)1850mm*(H) 1800mm |

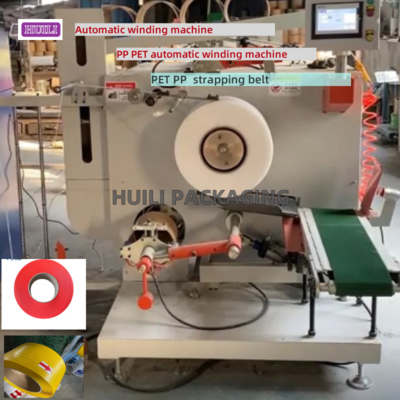

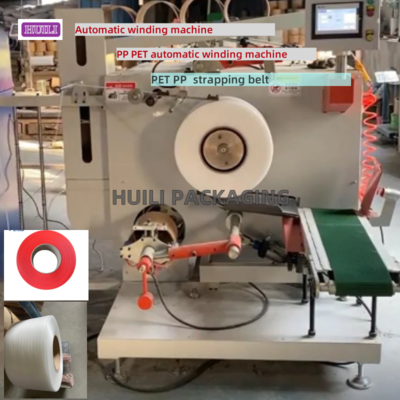

PP STRAP WINDER DUAL-SERVO MOTOR
AUTOMATICALLY STOP THE WINDER
PP STRAP WINDER DUAL-SERVO MOTOR

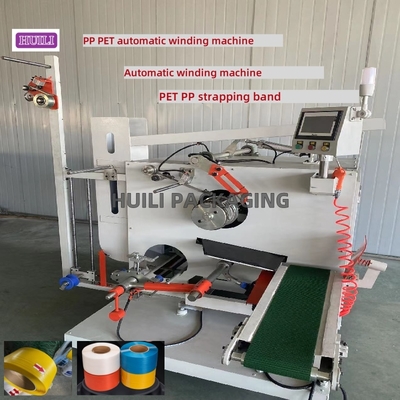

PP PET AUTOMATIC WINDING MACHINE
Product display: Neatly wound, smoothly wound, and seamlessly arranged.
FAQ:
Q: Where is the Automatic winding machine made?
A: China
Q: What is the voltage of the Automatic winding machine?
A: 220V
Q: What mode is the Automatic winding machine controlled by?
A: Servo motor control
Q: Can the Automatic winding machine be purchased separately?
A: Yes
Q: Does the Automatic winding machine require manual operation?
A: No, the entire process is controlled by PLC computerization.
