2-8 Strips Single Screw PET Strap Production Line With 100CC Metering Pump
Product Details
| Name: | PET Packing Strap Making Machine | Power Supply: | 380V/50Hz |
|---|---|---|---|
| Raw Material: | PET Bottles | Strap Width: | 9-32 Mm |
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*180 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Line Speed: | 100-200 M/min | Automation: | Automation PET |
| Highlight |
Single Screw PET Strap Production Line,8 Strips PET Strap Production Line,2 Strips PET Strap Production Line |
||
Product Description

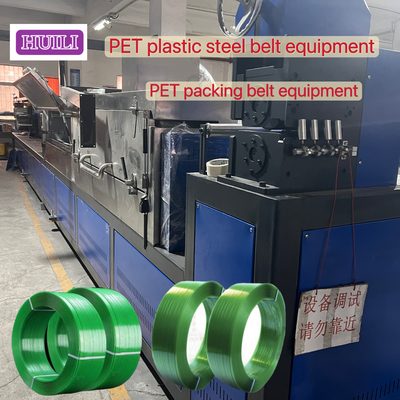

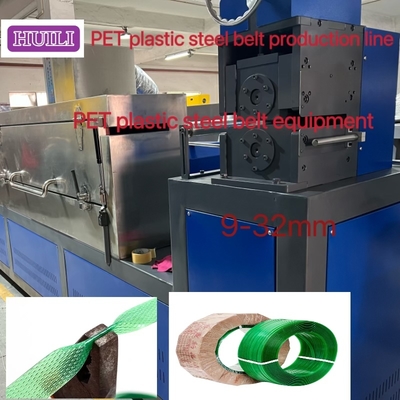

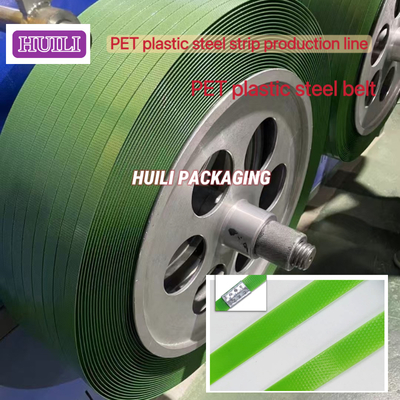

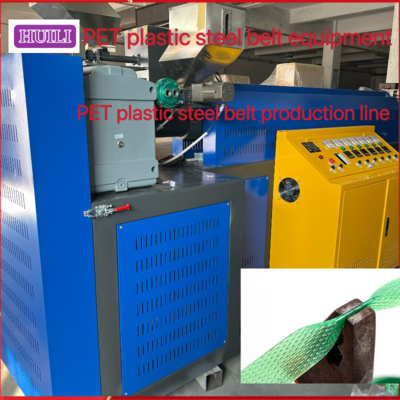

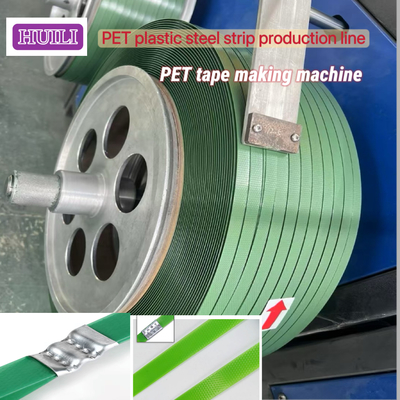

2-8 strips single screw PET plastic steel strip production line 100CC metering pump PET strip making machine
FEATURE DESCRIPTION OF PET PLASTIC STEEL BELT PRODUCTION LINE
PET plastic steel belt production line
PET plastic steel belt production line (equipment used to produce or use PET plastic strapping) has the following characteristics:
FEATURES
PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
RAW MATERIALS
PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials---- finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
Extrusion scre-------
The extruder of the PET plastic steel belt production line adopts a PET special screw with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.
ABOUT PLC SYSTEM
PLC control system------PET plastic steel strap production line adopts PLC control system, touch screen operation, easy debugging.
PET plastic steel strap production line adopts PLC microcomputer control system, simple operation, stable operation, can automatically memorize the production parameters of strapping straps of different specifications, and can memorize 99 different specifications at the same time, simple operation, stable operation.
After-sales service
PET plastic steel belt production line provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt production line .
2. Analysis of finished product manufacturing costs of PET plastic steel belt production line .
3. Analysis of raw materials used in PET plastic steel belt production line.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt production line .
2. Installation, commissioning and training of PET plastic steel belt production line .
3. Maintenance service of PET plastic steel belt production line .
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel belt production line ?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt production line ?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt production line?
A: 9-32mm
Q: Can the PET plastic steel belt production line be customized?
A: Customization supported
Q: Where does the PET plastic steel belt production line come from?
A: China.
Q: What are the certifications for the PET plastic steel belt production line ?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt production line ?
A: 1 set
Q: What is the weight of the PET plastic steel belt production line ?
20T, 40GP container * 3PCS
