Touch Screen Operation PET Strapping Band Making Machine Environmentally Friendly
Product Details
| Name: | Pet Strapping Band Making Machine | Strap Width: | 9-32 Mm |
|---|---|---|---|
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*180 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Line Speed: | 100-200 M/min | Automation: | Automation PET |
| Highlight |
Touch Screen Strapping Band Making Machine,Environmentally Friendly Strapping Band Making Machine |
||
Product Description

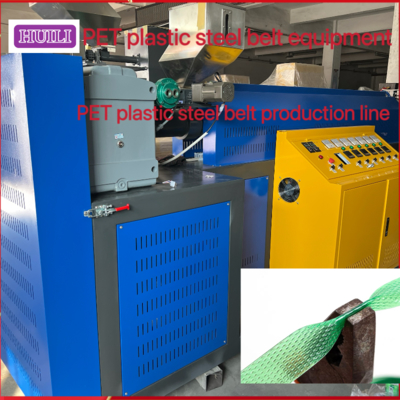

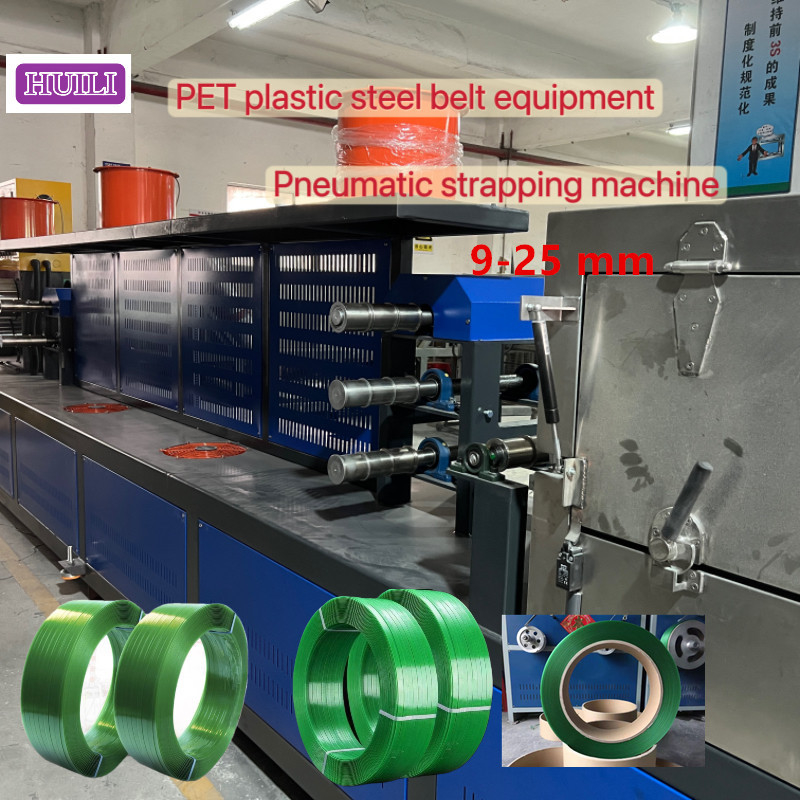

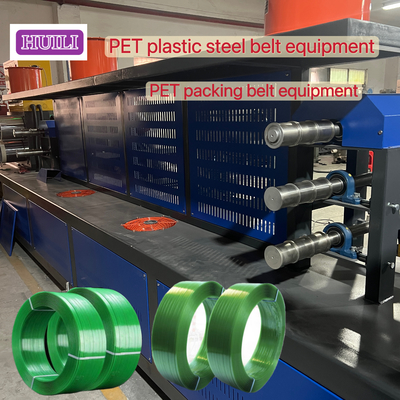

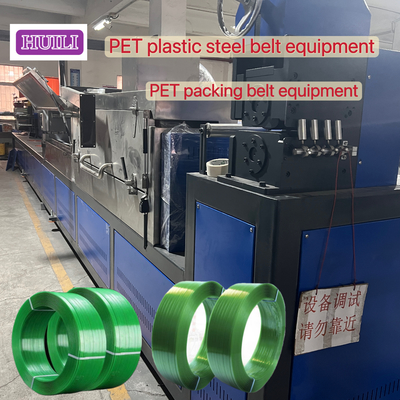

pet strapping band making machine environmentally friendly PET plastic steel band extruder
FEATURE DESCRIPTION OF PET STRAPPING BAND MAKING MACHINE
pet strapping band making machine
pet strapping band making machine (equipment used to produce or use PET plastic strapping) has the following characteristics:
Energy-saving and environmentally friendly
Constant temperature process: PET material has a low melting point (approximately 250-260°C), resulting in lower energy consumption compared to traditional steel belt production.
Pollution-free: The production process produces no toxic gases, meeting environmental standards (PET is recyclable).
Waste recycling: Recycled PET shreds can be used directly in production, reducing raw material waste and saving costs.
PLC control system------
pet strapping band making machine adopts PLC control system, touch screen operation, easy debugging.
pet strapping band making machine adopts PLC microcomputer control system, simple operation, stable operation, can automatically memorize the production parameters of strapping straps of different specifications, and can memorize 99 different specifications at the same time, simple operation, stable operation.
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
Extrusion scre-------
The extruder of the PET plastic steel belt machinery adopts a PET special screw with a unique parameter design. The screw has a unique separation and mixing effect, which ensures the uniform plasticization of the raw materials. It has the advantages of large extrusion volume, good plasticization, high hardness, and high wear resistance.
Application range of PET plastic steel belt:
PET packing tape, PET plastic steel strapping tape, is widely used in the strapping of various heavy goods and used to fix the goods during transportation. In warehouses, PET packing tape is also often used to fix goods and is used in heavy industries, such as the strapping and fixing of building materials.
After-sales service
PET plastic steel belt machinery provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of pet strapping band making machine.
2. Analysis of finished product manufacturing costs of pet strapping band making machine.
3. Analysis of raw materials used in pet strapping band making machine.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of pet strapping band making machine .
2. Installation, commissioning and training of pet strapping band making machine .
3. Maintenance service of pet strapping band making machine.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the pet strapping band making machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the pet strapping band making machine ?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the pet strapping band making machine?
A: 9-32mm
Q: Can the pet strapping band making machine be customized?
A: Customization supported
Q: Where does the pet strapping band making machine come from?
A: China.
Q: What are the certifications for the pet strapping band making machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the pet strapping band making machine ?
A: 1 set
Q: What is the weight of the pet strapping band making machine ?
20T, 40GP container * 3PCS
