Product Details:
Contact Now
Chat Now
|
Control Mode: | PLC | Motor Power: | 45 KW |
---|---|---|---|
Thickness: | 0.3-1.2 Mm | Name: | Pp Strapping Band Making Machine |
Width: | 5-19 Mm | Plastic Extruder: | PP |
Production Capacity: | 100-600 Kg/ H | Material: | PP |
Environmental Protection: | YES | Automatic Winding Machine: | YES |
Screen Changer: | Automatic Screen Changer | Metering Pump: | 50 CC |
Highlight: | 100% Polypropylene Strap Making Machine,PP Strap Making Machine High Speed |
100% polypropylene recycled material PP strapping production line PP strapping production equipment high-speed extruder
Product Description of PP strapping band making machine:

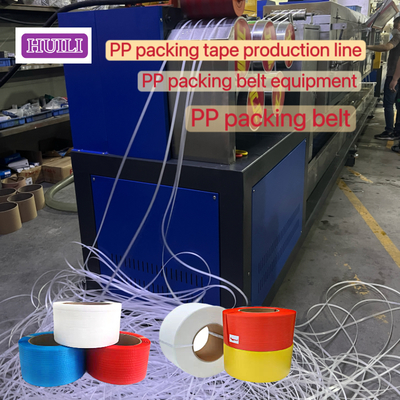

pp strapping band making machine
The pp strapping band making machine is a high-end intelligent extrusion equipment, which can be suitable for PP polypropylene particles as raw materials. The finished PP belt produced is suitable for a wide range of suitable ranges and can produce packaging belts of different specifications and materials, with a width of 5-19mm, 0.3-1.2mm, to meet various market demands.
Raw Materials-------
100% New PP polypropylene material
Raw Materials-------
100%PP recycled polypropylene
EXTRUSION PARAMETERS TABEL
Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
Raw material | PP polypropylene new material/recycled material | |||||
Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
Line speed(m/min) | ≧260-300 | |||||
PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
Drying barrel (kg) | 100 | 150 | 200 | 200 | 200 | 200 |
Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
Screen Changer | Automatic/Manua | |||||
Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Embossing wheel:
High-precision embossing wheel with clear embossing and adjustable pressure, making the strapping more aesthetically pleasing.
Material: SKD-11
About packaging:
pp strapping band making machine is packaged and fixed with PE stretch film
pp strapping band making machine is safely fixed in the container and tied and fixed with wire.
FAQ:
Q:What is the voltage of pp strapping band making machine?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the pp strapping band making machine?
A:We are from China.
Q:Can pp strapping band making machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of pp strapping band making machine ?
A:We have 30 years of manufacturing experience, and have their own pp strapping band making machine plant, equipment quality is stable, the process is worth choosing.
Q:Does pp strapping band making machine customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the pp strapping band making machine look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
