Name: | PP Strapping Band Making Machine | Raw Materials: | PP |
---|---|---|---|
Automation: | Automation PP | Width: | 5-19 Mm |
Thickness: | 0.3-1.2 Mm | Screw Material: | 38CrMoALA |
Control System: | PLC | Warranty: | 1 Year |
Line Speed: | 200-300 M/min | Voltage: | 380V/50HZ (Customizable) |
Highlight: | 380V PP Strap Making Machine,12mm PP Packing Strap Making Machine |
High-speed 5-12mm PP polypropylene strapping equipment PP packaging strap production line automatic screen changer
PRODUCT DESCRIPTION OF PP STRAPPING BAND MAKING MACHINE

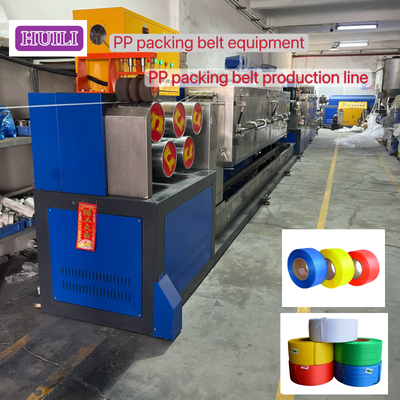

PP strapping band making machine
The main components of PP strapping band making machine:
P strapping band making machine is a high-end equipment used to produce PP strapping for a wide range of uses.
Raw materials------100% polypropylene new material or recycled material
Control method------ PLC control system, which can be set to different languages.
Motor------The equipment is driven by Siemens motor, which has stable and reliable performance and low failure rate.
EXTRUSION PARAMETERS TABLE
Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
Raw material | PP polypropylene new material/recycled material | |||||
Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
Line speed(m/min) | ≧260-300 | |||||
PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
Screen Changer | Automatic/Manua | |||||
Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Features of PP strapping band making machine:
Adopt Siemens motor, high-speed operation, low failure rate.
Adopt extruder special screw, good plasticization, long service life.
Adopt torque motor control, automatic deviation correction system, more integrated winding.
Applicable to balers:
1. Fully automatic baler
2. High-speed baler
3. Semi-automatic baler
4. Handheld electric baler
5. Manual clamp baler
FAQ:
Q: What are the specifications that the PP strapping band making machine can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:What is the transaction method of PP strapping band making machine?
EXW ,FOB,CIF
