Name: | PP Strapping Production Line | Raw Materials: | PP |
---|---|---|---|
Automation: | Automation PP | Width: | 5-19 Mm |
Thickness: | 0.3-1.2 Mm | Screw Material: | 38CrMoALA |
Control System: | PLC | Warranty: | 1 Year |
Line Speed: | 200-300 M/min | Voltage: | 380V/50HZ (Customizable) |
Highlight: | 380V PP Band Strapping Machine,300m/Min Plastic Strapping Equipment |

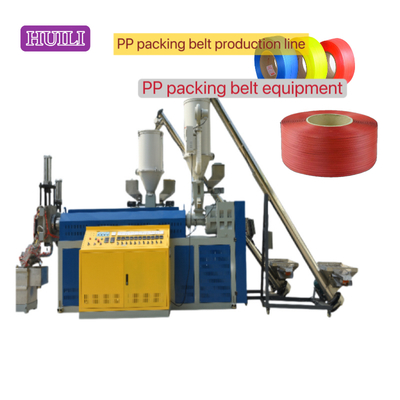

PP strapping equipment 100-300 m/min PP strapping production line PP plastic equipment
PRODUCT DESCRIPTION OF PP STRAPPING EQUIPMENT
PP strapping equipment
The PP strapping production line can use 100% new and recycled PP materials.
Calcium carbonate can be added to the raw materials to reduce production costs.
Dyeing masterbatches can be added to change the color of the raw materials.
The PP strapping production line can produce PP strapping band in different colors.
The PP strapping production line can also produce printed PP strapping band.

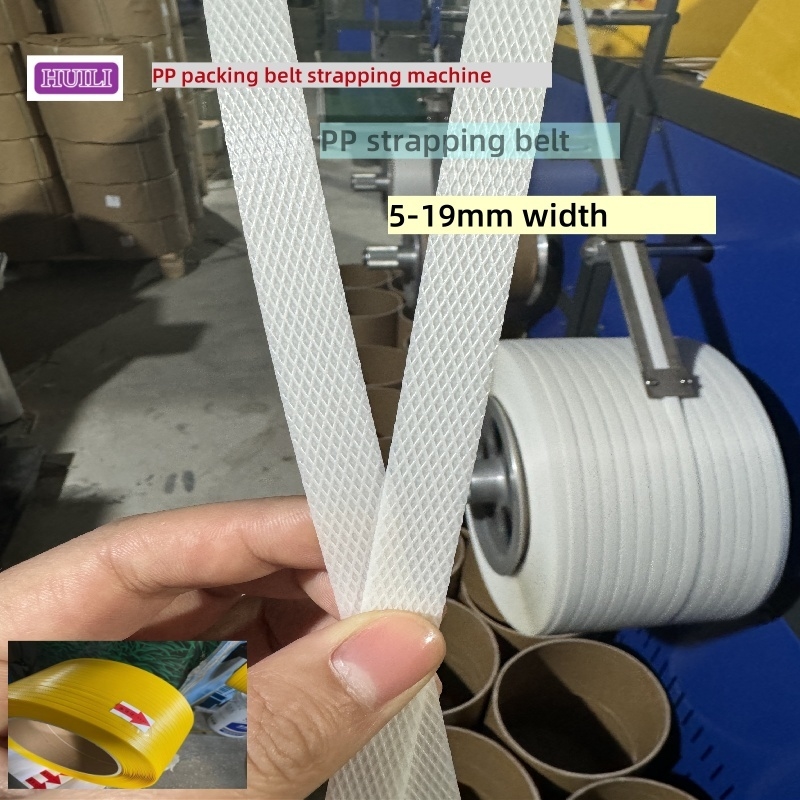

Printed PP strapping belt
EXTRUSION PARAMETERS TABLE
Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
Raw material | PP polypropylene new material/recycled material | |||||
Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
Line speed(m/min) | ≧260-300 | |||||
PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
Screen Changer | Automatic/Manua | |||||
Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
FEATURES:
Equipped with a specially hardened gear reducer, it resists high wear and has a long service life.
A unique correction device design controls product deviation.
A unique oven circuit heating system and internal reciprocating winding method fully utilize thermal energy and significantly reduce power loss.
A unique stretching process ensures excellent rigidity, stable width, and uniform thickness.
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
