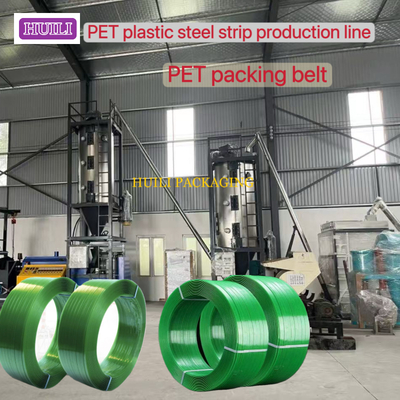

9-32mm PET strap manufacturing machine High-speed PET strapping production line
DESCRIPTION OF PET STRAP MANUFACTURING MACHINE
pet strap manufacturing machine
The pet strap manufacturing machine is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process involving melting, extrusion, stretching, shaping, and winding. PET plastic strapping, due to its high strength, corrosion resistance, aesthetic appeal, and recyclability, is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials.
PROCESS Features:
Reducer-----Equipped with a specially hardened gear reducer, it offers high wear resistance and a long service life.
Correcting Equipment----- Uniquely designed correcting device controls product deviation.
Heating Oven------ Unique oven circuit heating system with internal reciprocating windings fully utilizes thermal energy and significantly reduces power loss.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Width (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dryer tank |
3000L |
4000L |
5000L |
6000L |
6000L |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
100CC |
100CC |
100CC |
100CC |
| Screen Changer |
Single cylinder |
| Winding machine |
Automatic winding/ Semi-automatic winding |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Cooling system------Unique annular cooling system and multiple sets of guide rollers make the belt cooling and shrinking more thorough, the product more stable and the size more accurate.
Filter------
A three-dimensional, foldable, single-cylinder filter with a large surface area. The expanded filter area is 30 times larger than that of traditional flat filters. It can filter up to 80 meshes, and the unique screen changing mechanism allows for reusable filter covers, reducing manufacturing costs.

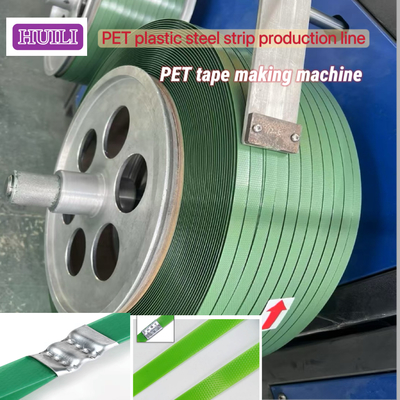

Finished PET plastic steel belt:
After-sales service
pet strap manufacturing machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of pet strap manufacturing machine
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of pet strap manufacturing machine.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of pet strap manufacturing machine.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the pet strap manufacturing machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the pet strap manufacturing machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the Ppet strap manufacturing machine?
A: 9-32mm
Q: Can the pet strap manufacturing machine be customized?
A: Customization supported
Q: Where does the pet strap manufacturing machine come from?
A: China.
Q: What are the certifications for the pet strap manufacturing machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the pet strap manufacturing machine?
A: 1 set
Q: What is the weight of the pet strap manufacturing machine?
20T, 40GP container * 3PCS
