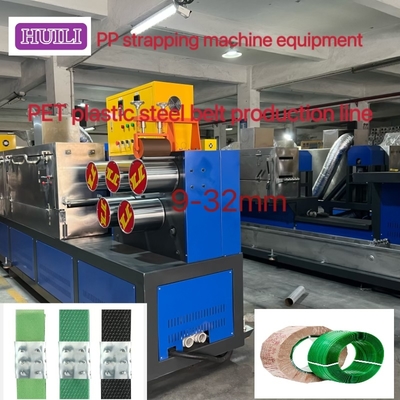

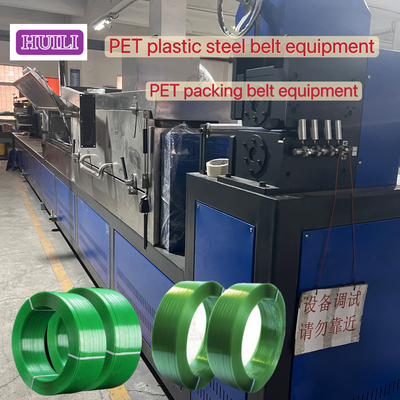

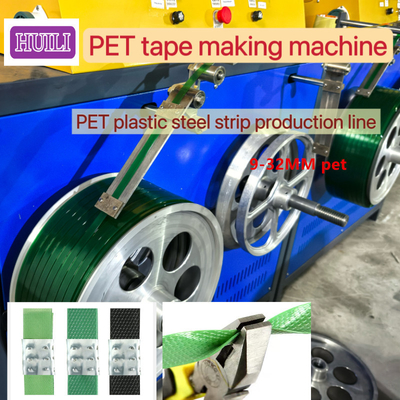

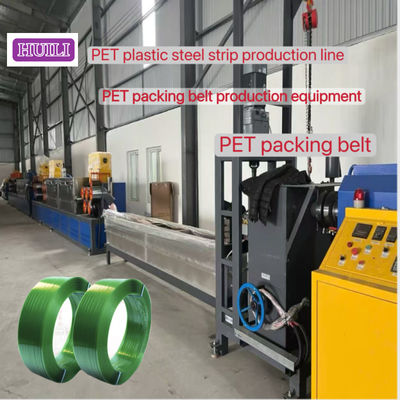

PET plastic strap making machine Single screw PET strapping production line 100-250 m/min line speed

PET plastic strap making machine Single screw PET strapping production line 100-250 m/min line speed

FEATURE DESCRIPTION OF PET PLASTIC STRAP MAKING MACHINE

PET plastic strap making machine

The PET strapping production line is a high-speed, intelligent, and environmentally friendly plastic equipment. It produces finished PET plastic-steel strapping with a wide range of applications, featuring high tensile strength, moisture resistance, and UV resistance. Suitable for strapping heavy products such as steel, aluminum, glass, chemical fiber, cotton, and bricks.

FEATURES

1. Special single screw extrusion technology, screw size can be customized according to customer requirements.

2. Raw materials: 100% recycled PET bottle flakes or PET crushed materials (after Grace-M PET cleaning and recycling line)

3. Plasticization is uniform throughout the line, extrusion is stable, and PLC is automatically controlled

4. According to different requirements, replace the A coating material to make the belt have better and special functions. For example, the belt used for packaging cotton can improve the breaking strength and joint strength of the belt when welding

Number of belts: 1-8 belts

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding

                     EXTRUSION PARAMETERS TABLE

PET strapping equipment (equipment used to produce or use PET plastic strapping) has the following characteristics:

1. Material characteristics

High strength-----PET (polyethylene terephthalate) strapping has high tensile strength and is suitable for heavy packaging.

Good flexibility----not easy to break, can meet the strapping needs of goods of different shapes.

Corrosion resistance-----acid and alkali resistant, moisture-proof, suitable for harsh environments.

Environmentally friendly and recyclable-----PET can be reused, in line with the trend of green packaging

Raw materials

                      ------100% PET bottle flakes (bright color, strong transparency, high tensile strength, not easy to break)

After-sales service

PET plastic strap making machine provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:

Pre-sales:

1. Layout of PET plastic strap making machine .

2. Analysis of finished product manufacturing costs of PET plastic strap making machine .

3. Analysis of raw materials used in PET plastic strap making machine.

After-sales service:

1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic strap making machine .

2. Installation, commissioning and training of PET plastic strap making machine .

3. Maintenance service of PET plastic strap making machine.

4. Regular maintenance and repair

5. Fault diagnosis

6. Software update and upgrade

7. Spare parts and accessories

8. Training and technical consultation

FAQ:

Q: What is the voltage of the PET plastic strap making machine ?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the PET plastic strap making machine ?

A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H

Q: What is the producible width of the PET plastic strap making machine?

A: 9-32mm

Q: Can the PET plastic strap making machine be customized?

A: Customization supported

Q: Where does the PET plastic strap making machine come from?

A: China.

Q: What are the certifications for the PET plastic strap making machine ?

A: ISO CEO certification.

Q: What is the minimum order quantity for the PET plastic strap making machine?

A: 1 set

Q: What is the weight of the  PET plastic strap making machine ?

20T, 40GP container * 3PCS
