PET plastic steel strap production line Single screw PET strapping equipment 100% PET crushed material
Product Details
| Name: | PET Plastic Steel Belt Production Line | Strap Width: | 9-32 Mm |
|---|---|---|---|
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*150 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Line Speed: | 100-200 M/min | Automation: | Automation PET |
| Highlight |
PET plastic steel strap machine,single screw PET strapping equipment,PET strap production line with warranty |
||
Product Description
PET plastic steel strap production line Single screw PET strapping equipment 100% PET crushed material
FEATURE DESCRIPTION OF PET PLASTIC STEEL BELT PRODUCTION LINE

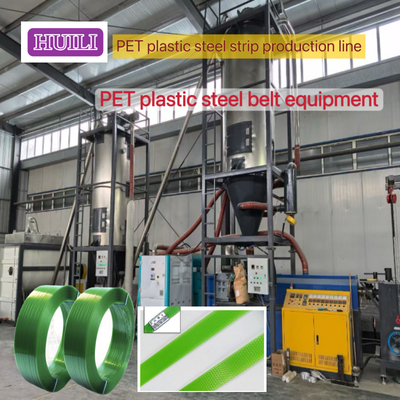

PET plastic steel belt production line
PET plastic steel belt production line (equipment used to produce or use PET plastic strapping) has the following characteristics:
FEATURES:
1. Special single screw extrusion technology, screw size can be customized according to customer requirements.
2. Raw materials----- 100% recycled PET bottle flakes or PET crushed materials (after Grace-M PET cleaning and recycling line)
3. Plasticization is uniform throughout the line, extrusion is stable, and PLC is automatically controlled
4. According to different requirements, replace the A coating material to make the belt have better and special functions. For example, the belt used for packaging cotton can improve the breaking strength and joint strength of the belt when welding
Number of belts: 1-8 belts
Raw materials-----
100% recycled PET bottle flakes
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (strips) →⑦ Preheating in the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
EXTRUSION PARAMETERS TABLE
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Width (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PLC control system------
PET plastic steel strap production line adopts PLC control system, touch screen operation, easy debugging.
PET plastic steel strap production line adopts PLC microcomputer control system, simple operation, stable operation, can automatically memorize the production parameters of strapping straps of different specifications, and can memorize 99 different specifications at the same time, simple operation, stable operation.
After-sales service
PET plastic steel strap production line provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel strap production line .
2. Analysis of finished product manufacturing costs of PET plastic steel strap production line .
3. Analysis of raw materials used in PET plastic steel strap production line .
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel strap production line .
2. Installation, commissioning and training of PET plastic steel strap production line .
3. Maintenance service of PET plastic steel strap production line .
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel strap production line ?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel strap production line ?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel strap production line ?
A: 9-32mm
Q: Can the PET plastic steel strap production line be customized?
A: Customization supported
Q: Where does the PET plastic steel strap production line come from?
A: China.
Q: What are the certifications for the PET plastic steel strap production line ?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel strap production line ?
A: 1 set
Q: What is the weight of the PET plastic steel strap production line ?
20T, 40GP container * 3PCS
