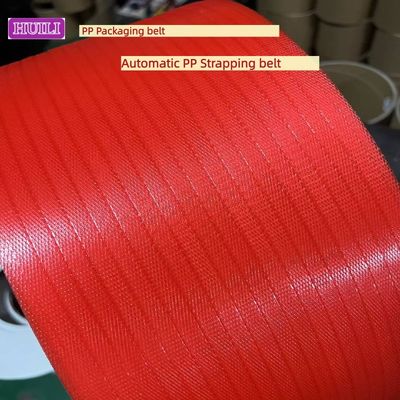

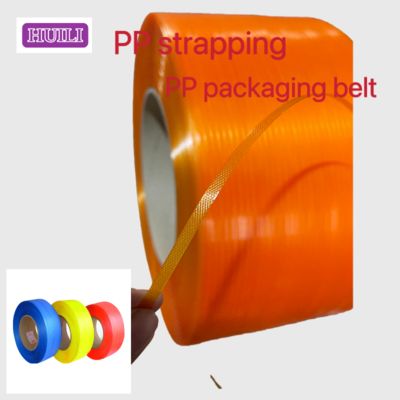

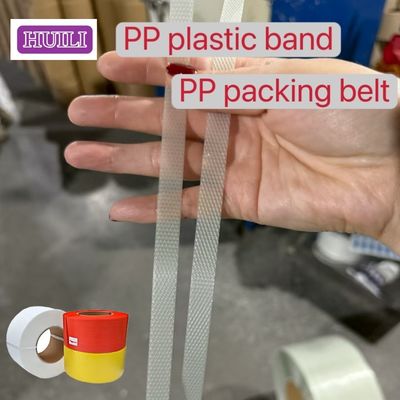

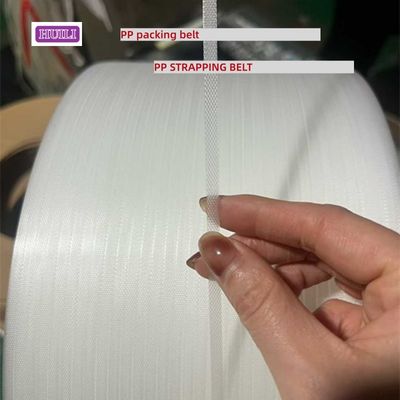

PP strapping belt 5–12 mm PP strapping For use with automatic strapping machines
Product Details
| Name: | PP Strapping Belt | Width: | 5-19 Mm |
|---|---|---|---|
| Thickness: | 0.3-1.2 Mm | Color: | White, Transparent, Yellow |
| LOGO: | Customizable | Raw Material: | 100% PP Polypropylene |
| Tensile Strength: | YES | UV Protection: | YES |
| Moisture Resistance: | YES | Automatic Belt: | YES |
| Highlight |
PP strapping belt for automatic machines,5-12 mm PP packing belt,PP strapping for automatic strapping |
||
Product Description
PP strapping belt 5–12 mm PP strapping For use with automatic strapping machines
DESCRIPTION OF PP STRAPPING BELT:
PP strapping belt is a lightweight, high-strength, corrosion-resistant, moisture-proof, flexible, environmentally friendly, easy to operate, economical and practical, with various colors, heat-resistant and anti-aging packaging material. It is made of PP polypropylene granules and is widely used in various industries.
FEATURES-----
Excellent physical properties---- Exhibits good plasticity, high tensile strength at break, resistance to bending fatigue, low density, and superior tensile impact performance.
Wide applicability---- Suitable for use with semi-automatic, fully automatic, and manual strapping machines.
Attractive appearance---- Features vibrant colours including yellow, white, black, and blue, with options for custom printing of text or logos upon request.
Corrosion resistance---- Possesses good chemical stability and is resistant to corrosion by acids, alkalis, and other substances.
PP Packing strap specification table
| Model | Width | Thickness | Pull | Gross weight | Net weight | Net weight | Length |
| PP-05045 | 5.0mm | 0.45mm | >50kg | 10kg | 9.5kg | Ø200mm | 7000m |
| PP-08050 | 8.0mm | 0.50mm | >90kg | 10kg | 9.5kg | Ø200mm | 4700m |
| PP-09060 | 9.0mm | 0.60mm | >90kg | 10kg | 9.5kg | Ø200mm | 3150m |
| PP-10060 | 10.0mm | 0.60mm | >110kg | 10kg | 9.5kg | Ø200mm | 2350m |
| PP-11045 | 11.0mm | 0.45mm | >80kg | 10kg | 9.5kg | Ø200mm | 3650m |
| PP-12080 | 12.0mm | 0.80mm | >150kg | 10kg | 9.5kg | Ø200mm | 1700m |
| PP-13580 | 13.5mm | 0.80mm | >160kg | 10kg | 9.5kg | Ø200mm | 1550m |
| PP-15100 | 15.0mm | 1.00mm | >180kg | 10kg | 9.5kg | Ø200mm | 1050m |
| PP-18080 | 18.0mm | 0.80mm | >180kg | 10kg | 9.5kg | Ø200mm | 1150m |
| PP-19060 | 19.0mm | 0.60mm | >160kg | 10kg | 9.5kg | Ø200mm | 1350m |
| PP-19070 | 19.0mm | 0.70mm | >200kg | 10kg | 9.5kg | Ø200mm | 1200m |
| PP-19080 | 19.0mm | 0.80mm | >240kg | 10kg | 9.5kg | Ø200mm | 1000m |
Selected specifications:
Width: 5–19mm, with common dimensions including 12mm, 13.5mm, 15.5mm, and 19mm. Width tolerance is typically ±0.5mm.
Thickness: Generally ranging from 0.3mm to 1.0mm, with thickness tolerance of ±0.03mm.
Breaking strength: For example, a 12mm-wide, 0.6mm-thick pure PP strapping band has a breaking strength > 1000N; a 15.5mm-wide, 0.6mm-0.8mm-thick pure PP strapping band has a breaking strength of 1500N-2000N.
Elongation at break: Generally, pure PP strapping exhibits elongation at break < 20%.
Advantages of PP Strapping
Excellent elasticity and holding power
1. Break strength ≥1800N, uniform thickness (±0.05mm), resistant to stretching and deformation, meeting industrial-grade strapping requirements.
2. Manufactured from virgin PP granules without recycled material admixture, featuring consistent colouration and a smooth surface. Prevents machine jamming and minimises wear, thereby extending strapping machine service life.
FAQ:
Q:Can the width of PP strapping be customized?
Yes
Q:Can the color of PP strapping belt be customized?
Yes, yellow, blue, white, transparent, red, green, black, etc.
Q:Can the raw materials of PP strapping be selected?
Yes,You can choose according to customer requirements.
Q:What is the MOQ for PP strapping belt?
100 rolls
Q:What is the weight of the PP package?
Gross weight: 10KG, net weight: 9.5KG.
Q:About the packaging of PP strapping belt?
Full rolls of kraft paper or PE film packaging, 100 rolls/pallet,
Pallet size: 1.2*1.2*2.3m
