Automated PP / PET strapping machine 5-19mm PP strapping belt making machine for automatic packaging machines
Product Details
| Name: | Pp Packing Belt Making Machine | Material: | 100% PP New Material |
|---|---|---|---|
| Strap Width: | 5-19 Mm | Strap Thickness: | 0.3-1.2 Mm |
| Paper Core Diameter: | 200*180 Mm | Screw: | 110*3300 Mm |
| Screw Material: | 38CrMoALA | Line Speed: | 100-300 M/min |
| Controllable: | PLC | Production Capacity: | 100-600 KG/ H |
| Highlight |
PP PET strapping machine 5-19mm,automatic strapping belt making machine,PP strap production line with warranty |
||
Product Description
Automated PP / PET strapping machine 5-19mm PP strapping belt making machine for automatic packaging machines
DESCRIPTION OF PP PACKING BELT MAKING BACHINE:
PP strapping belt making machine
PP strapping belt making machine is used to produce PP strapping tape for strapping and packaging. It adopts PLC control, and the whole production line realizes automatic production. It uses special screw and pressure sensor for PP extruder to ensure stable production and strapping tape quality. You can use 100% recycled pp flakes or virgin materials or mix them with each other.
FEATURES:
Main components
The PP strapping production line is mainly composed of the following parts:
Feeder---- transfers PP polypropylene raw materials to the machine barrel.
Extruder------ used for melting and extrusion of plastics.

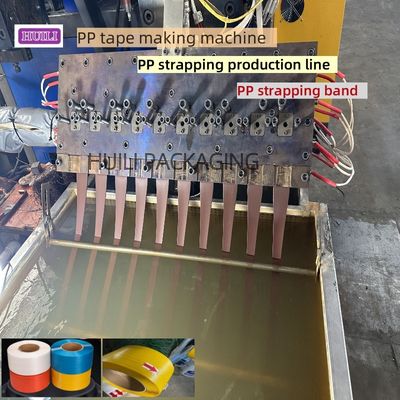

Die head-----controls the molding of the extruded plastic strip.
Cooling water tank----- cools the extruded plastic strip.
Stretching oven------- ensures the stretching ratio of the strip and more uniform plastic molding.
Tractor----- stretches the formed plastic.
Forming oven------ further ensures the stability of the shape of the plastic.
Winding machine------ winds the formed plastic strapping tape into rolls and puts it into storage.
PLC control system------- controls the entire machine, specification debugging, and parameter ratio setting.
ALIAS:
PP strapping machinery
PP polypropylene equipment
PP strapping equipment
Plastic equipment
PP plastic machine
PP belt making machine
PP plastic belt machine
PP Strap Making Machine
Machine Highlights:
High degree of automation---the production line adopts automatic control to reduce manual intervention, improve production efficiency and product quality.
High efficiency and energy saving---the equipment design is optimized, the energy consumption is low, it meets environmental protection requirements, and reduces production costs by more than 30%.
EXTRUSION PARAMETERS TABLE
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material | |||||
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧260-300 | |||||
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
| Screen Changer | Automatic/Manua | |||||
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
Regarding the wrapping machine:
1. Optional: Semi-automatic wrapping machine, paper core: 200*180/406*150mm
2. Optional: Automatic wrapping machine, paper core: 200*180/190mm, paper core replacement without machine downtime, automatic wrapping, automatic rewinding, and automatic roll changing, saving labor and manufacturing costs.
FAQ:
Q:What is the voltage of PP strapping belt making machine?
A:380V/50HZ, we support customization
Q:Can the PP strapping belt making machine be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping belt making machine?
A:We are from China.
Q:Can PP strapping belt making machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping belt making machine?
A:We have 30 years of manufacturing experience, and have their own PP strapping belt making machine plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping belt making machine customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
