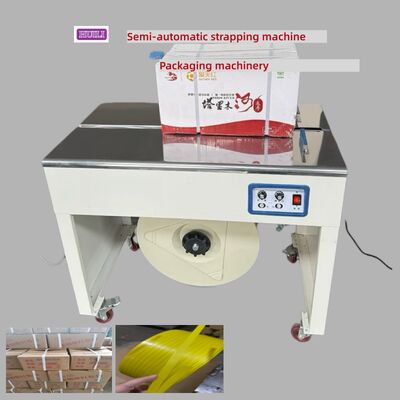

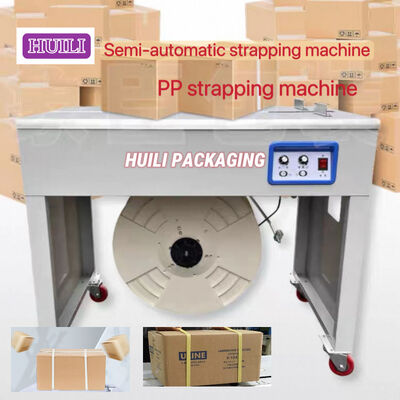

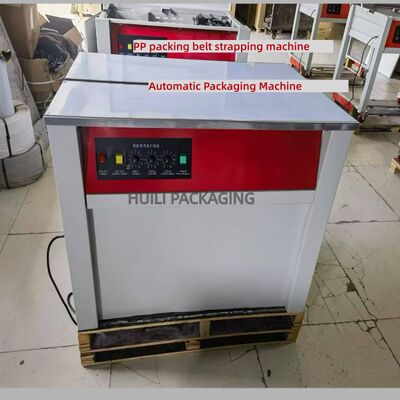

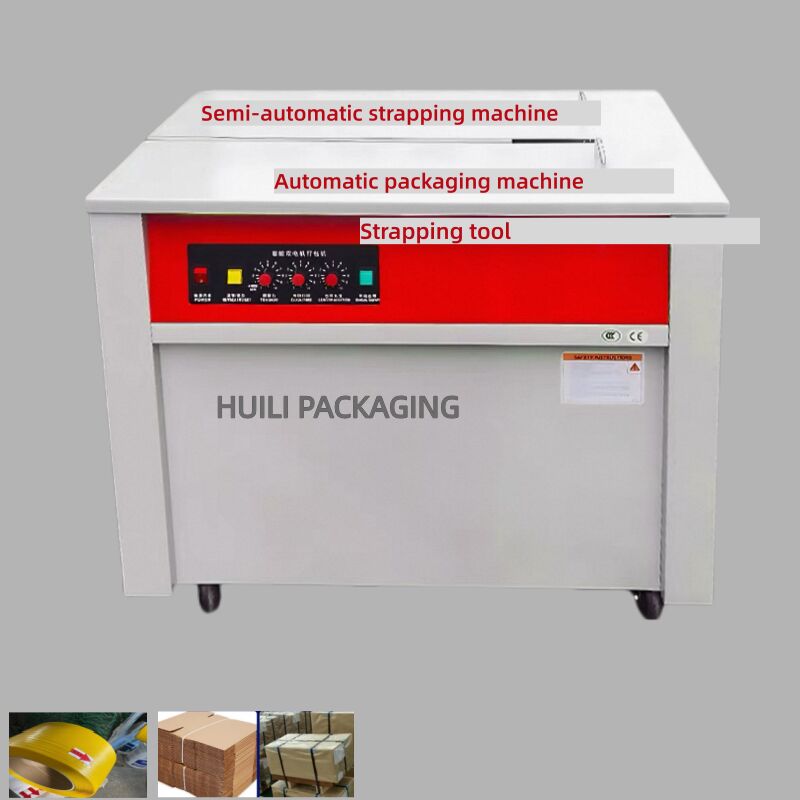

Product description of semi-automatic baling machine:
What is a semi-automatic strapping machine?
Semi-automatic strapping machine is used to secure cartons, wooden boxes, or other packages with strapping belt (usually PP or PET plastic strap ). It's called "semi-automatic" because some operations are performed manually, while the machine automatically performs the core tightening, hot-melt bonding, and belt cutting.
Core Working Principle
The workflow of a semi-automatic strapping machine can be summarized as follows:
1. Threading----- The operator threads the strapping tape around the box and feeds the front end of the tape into the machine's inlet.
2. Sensor Start------- The machine automatically starts (or the operator presses a button) upon sensing the insertion of the strapping tape.
3. Tapering and Tightening------ The machine's motor drives the take-up reel, pulling the strapping tape back to securely wrap the package. The tension can be adjusted as needed.
4. Hot Melt Bonding----- When the tension reaches the preset value, the machine's hot melt head moves to the overlapping portion of the strapping tape (usually the top and bottom layers), heating and melting it.
5. Laminating and Cutting-----The hot melt head applies pressure while heating, firmly pressing the two ends of the melted tape together to form a secure joint. The cutter then quickly removes any excess tape.
6. Reset------ After bonding and cutting, the hot melt head resets, returning the machine to standby mode, ready for the next operation.
PARAMETERS
| Name |
Semi-automatic strapping machine |
| Suitable belt width |
9-15mm |
| Suitable belt thickness |
0.4-1.2 mm |
| Joining method |
hot melt bonding |
| Adhesion rate |
more than 100% |
| Maximum tightening force |
400N (about 40kg) |
| Strapping tape paper core |
200*180mm |
| Strapping tape paper core |
unlimited |
| Power supply |
single phase 200V/50HZ |
| Machine power |
0.4KW |
| Weight |
70KG |
| Machine size |
(L)800*(W)600*(H)750 mm |
Application Scenarios
Semi-automatic balers are common equipment in the following industries:
Logistics and express delivery—used for reinforcing parcel cartons.
E-commerce warehousing—packing cartons of goods in the warehouse's shipping area.
Paper and printing industries—packing paper, cartons, and other products.
Home appliance industries—packing outer packaging for finished appliances.
Chemical and food industries—packing boxed or bagged raw materials and finished products.
Fruit industry—packing fruit cartons, fruit baskets, and other products.
After-sales service:
1. Provide the machine's operating manual
2. Provide the machine's usage method (video)
3. Assist customers to choose the appropriate PP strapping belt
4. Assist customers to adjust the appropriate strapping strength
5. Warranty period for the whole machine: 12 months
FAQ:
Q: What size of strapping products can the semi-automatic strapping machine be used for?
No size restrictions
Q : What size of PP strapping belt can the semi-automatic strapping machine be used for?
Width: 9-15mm, thickness: 0.3-1.2 mm.
Q: Can the semi-automatic strapping machine be customized?
Batch can be customized according to customer requirements
Q: Does the semi-automatic strapping machine have a warranty period?
Yes, warranty: 12 months
Q :Can the voltage of the semi-automatic strapping machine be customized?
Yes
Q: What is the weight of the semi-automatic strapping machine?
80KG, size: (L)800*(W)600*(H)750 mm
