Pneumatic Strapping Machine High-Speed PP PET Handheld Strapping Tool 13-25mm PP PET Strapping strap
DESCRIPTI OF PP PET HANDHELD ELECTRIC STRAPPING MACHINE

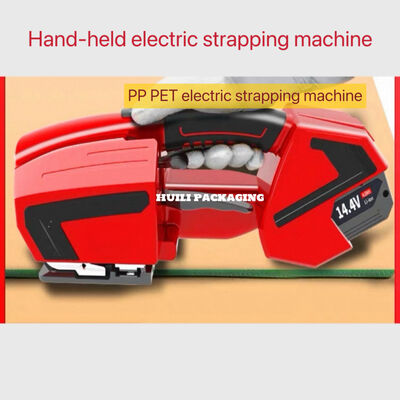

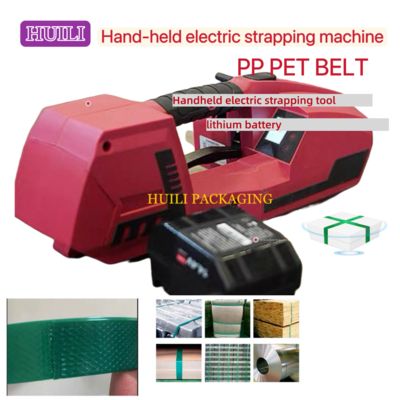

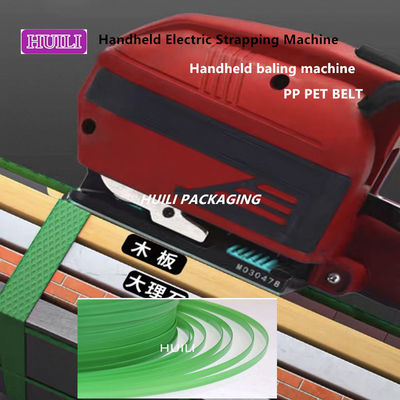

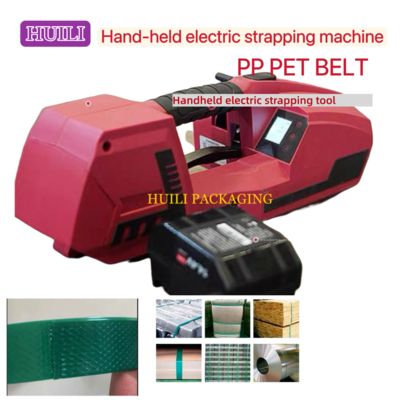

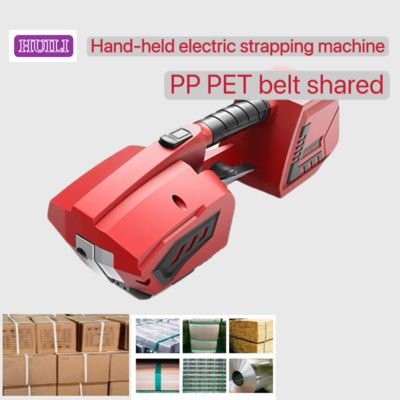

Handheld electric strapping machine
Functional Description:
Upon completion of the bonding action with PP or PET strapping bands, the pneumatic strapping machine automatically severs the excess tail end of the strapping band, separating it from the joint.
Purpose: To ensure a neat and aesthetically pleasing finished package, while preventing the excess band from causing injury to personnel or damaging other goods. This guarantees a more secure product that is less prone to loosening or detachment.
Standard Information:
Color: chestnut brown
Applicable strapping: PP, PET
Applicable width: 13-16mm
Applicable thickness: 0.4-1.2mm
Battery capacity: 4.0Ah 5/60hz 57.6wh
Tension speed: 100-200mm/s
Sealing method: friction welding
Tensile force: 900-3200N
Machine size: L380XW130XH130mm
Weight: 3.1KG
Standard configuration for a single unit: one battery and one charger
MACHINE PARAMETERS
| Name |
Handheld Electric Strapping Machine |
| Strapping Type |
PP PET belt |
| Strapping belt width |
11-19mm |
| Strapping belt thickness |
0.4-1.2mm |
| Tightening force |
0-3200N(Adjustable) |
| Interface type |
Friction hot melt bonding |
| Battery capacity |
40.A/h 50/60hz 75w |
| Suitable voltage |
100-230V |
| Machine size |
380*130*130mm |
| Charging time |
90 min |
| Machine weight |
4.0kg |
| Carton size |
400*140*150mm |
Functional Description: Joint fixation is achieved through two primary methods:
Thermal Friction Bonding---- This is the most common approach. The machine employs a minute ‘friction pad’ to generate high-speed vibrational friction between two strapping bands (at their overlapping section), producing heat that melts their surfaces. Immediate pressure and cooling then fuse them into a robust, integrated unit.
Mechanical Locking with Metal Buckle------ For exceptionally heavy or demanding cargo, a separate metal buckle is employed. The machine applies substantial pressure to press both ends of the strap into the buckle, achieving a mechanical lock.
.
Key Features and Advantages
High Efficiency
Pneumatic strapping machines operate at exceptional speeds, typically completing a full cycle of tensioning, bonding, and cutting within 1-2 seconds. This significantly enhances production efficiency in assembly line operations and bulk packaging.
High Strapping Force and Robustness
Utilising pneumatic motors and cylinders, it generates substantial and consistent tension force, far exceeding manual tightening strength. The heat-sealed joint achieves 50%-80% of the strap's tensile strength, delivering exceptional reliability—particularly suited for heavy goods requiring high-strength securing.
FAQ:
Q: How many batteries does the handheld electric baler have?
A: Normally 1, 2-3 can be selected according to demand
Q; Is the handheld electric baler suitable for PP PET strapping belt?
A: The same machine can be used for 2 types of PP PET strapping belts, and the spring needs to be replaced. The tightening force is different, and the selected spring is also different.
Q: Is the handheld electric baler suitable for air transportation?
A: Yes, we have test data
Q: Does the handheld electric baler have a warranty?
A: Warranty time: 12 months
Q: Where is the handheld electric baler made?
A: China, FE/CO certificate of origin can be provided
Q: What are the specifications suitable for the handheld electric baler?
A: PP PET Strapping belt width: 11-19mm
Q: MOQ?
A: 1 PCS
