High Speed 5-19mm PP Strap Belt Extrusion Machine PP Strap Making Machine PLC control system
DRODUCT DESCRIPTION OF PP STRAP MAKING MACHINE:
PP Strap Making Machine
The PP Strap Making Machine is a high-end extrusion equipment with a dedicated screw for the extruder. It has uniform plasticization, consistent flow channels for the embryos, more complete shrinkage and shaping, more stable products, and more accurate dimensions
FEATURES:
1. Extruder
Function: Heats and melts PP raw material (granular, with optional color masterbatch, fillers, etc.) to plasticize it, and continuously extrudes the melt through a rotating screw.
Screw: Screw diameter (selected according to capacity requirements, commonly 30mm), length-to-diameter ratio (generally 25:1-30:1 to ensure full plasticization of the raw material), heating power (segmented temperature control to adapt to the raw material's melt profile).
2. Die (Extrusion Die)
Function: Extrudes the melt conveyed by the extruder through a die of a specific shape (usually a flat slit) to form a preliminary strip-shaped billet (thickness and width must match subsequent processes).
Features: The die gap is finely adjustable to ensure uniform billet thickness; the internal flow channels are smooth, reducing melt resistance and preventing raw material degradation.

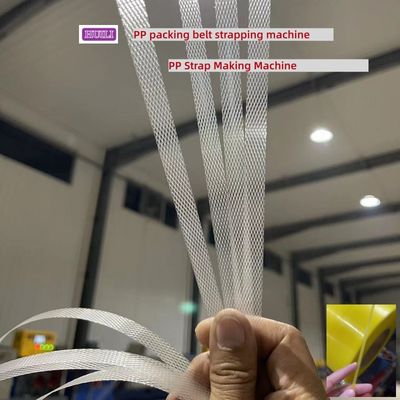

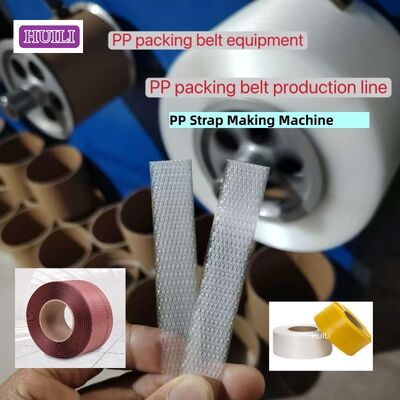

PP strapping band width: 5-19mm, thickness: 0.3-1.2mm..
pp strap manufacturing machine
pp strapping roll manufacturing machine
pp strapping band making machine
pp strap production line
pp strapping roll making machine
pet strap line
4 straps -PP strapping equipment parameters
| Name |
pp strap band extrusion line |
| Number of strips |
4 strips |
| Extrusion specifications |
Width: 5-19mm, Thickness: 0.4-1.2mm |
| Material barrel |
150kg |
| Control system |
PLC |
| Screw |
¢ 110*3300 mm |
| Screw feeder |
1 set |
| Motor power |
37(kw) |
| Screen changer |
Automatic/Manual |
| Embossing machine |
1/2 sets |
| Winding machine: |
Automatic/Manual |
| Total power of equipment |
100kw |
| Production capacity: |
230-300kg /h |
| Equipment voltage |
three-phase 380v /50Hz (Support customization) |
| Container |
40GP*1+20GP*1pcs |

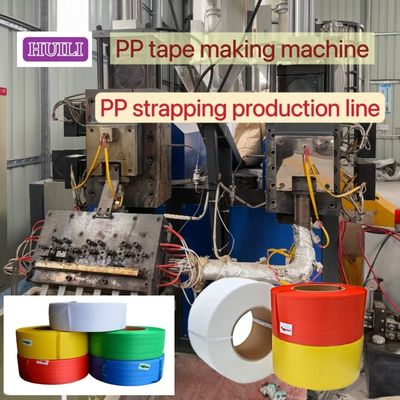

MAIN COMPONENTS
The PP strapping production line is mainly composed of the following parts:
Feeder---- transfers PP polypropylene raw materials to the machine barrel.
Extruder------ used for melting and extrusion of plastics.
Die head-----controls the molding of the extruded plastic strip.
Cooling water tank----- cools the extruded plastic strip.
Stretching oven------- ensures the stretching ratio of the strip and more uniform plastic molding.

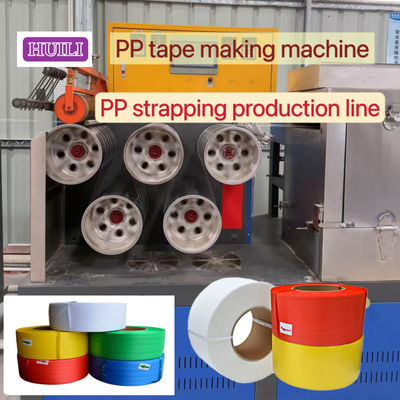

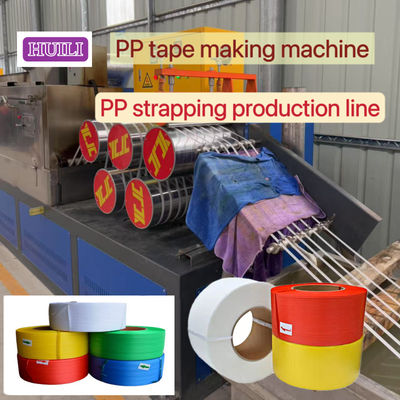

Tractor----- stretches the formed plastic.
Forming oven------ further ensures the stability of the shape of the plastic.
Winding machine------ winds the formed plastic strapping tape into rolls and puts it into storage.
PLC control system------- controls the entire machine, specification debugging, and parameter ratio setting.
FAQ:
Q:What is the voltage of PP Strap Making Machine?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping band?
A: L:36 M.
Q:Where is the PP Strap Making Machine?
A:We are from China.
Q:Can PP Strap Making Machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP Strap Making Machine?
A:We have 30 years of manufacturing experience, and have their own PP Strap Making Machine plant, equipment quality is stable, the process is worth choosing.
Q:Does PP Strap Making Machine customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP Strap Making Machine look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
