PP Strap Making Machine 5-19mm PP Strapping Production Line PP PET Servo-Driven Wrapping Machine

PP Strap Making Machine 5-19mm PP Strapping Production Line  PP PET Servo-Driven Wrapping Machine

PRODUCT DESCRIPTION OF PP STRAPPING BELT MAKING MACHINE

The whole machine of the PP strapping production line adopts a PLC control system, a PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate. PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate.

Working principle of PP polypropylene extruder:

The feeding section ---- feeds the PP polypropylene pellets through the hopper into the extruder.

Extrusion ---- screw is heated and rotated to melt and extrude the material.

Extrusion ---- extrudes the melted polypropylene strip blanks through the die to form the desired shape.

Cooling & Shaping ---- The extruded product is shaped and cooled by cooling water tank device.

Stretching ---- stretching oven heats the PP strip blanks and stretches them, ratio 1-10 times.

Shaping---Shaping oven will heat and shape the PP belt again to make the finished product specification more standard.

Winding ---- will wind the finished PP belt into rolls and put it into storage.

ties.

                     EXTRUSION PARAMETERS TABEL

Features of embossing wheel:

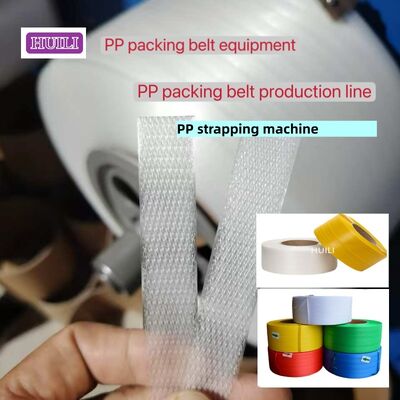

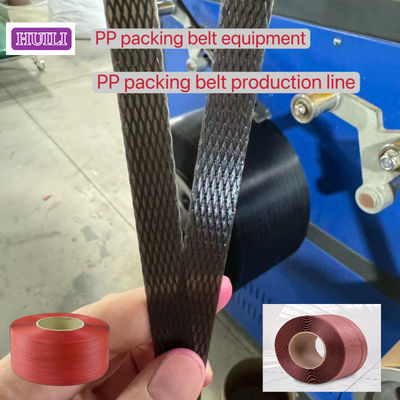

1. The embossing wheel is nitrided and heat-treated to achieve a surface hardness of 60 degrees, which is strong and durable. The surface texture of the strapping belt pressed out by this embossing machine is clear and rough enough, and the automatic strapping machine uses strong belt feeding.

2. The upper and lower flower wheels of the embossing machine are equipped with synchronous gears to ensure synchronous rotation of the upper and lower wheels, ensuring that the flower spinning on both sides of the strapping tape is completely consistent, increasing the beauty and transparency of the strapping tape.

3. When assembling the upper and lower flower wheels, a fixed gap is left to prevent collision, which extends the service life of the flower wheels.

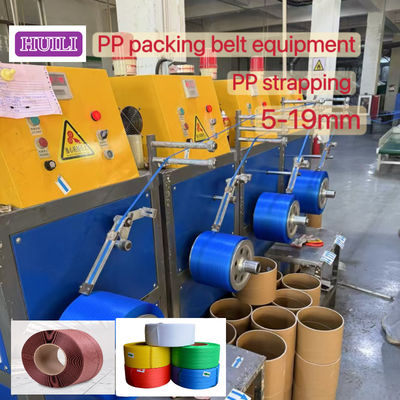

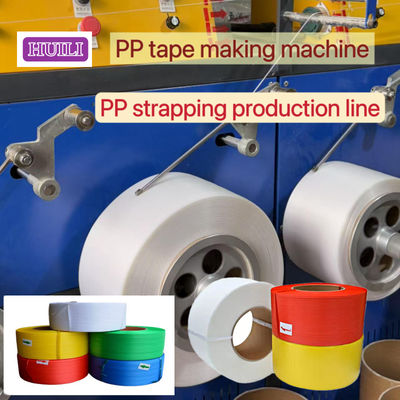

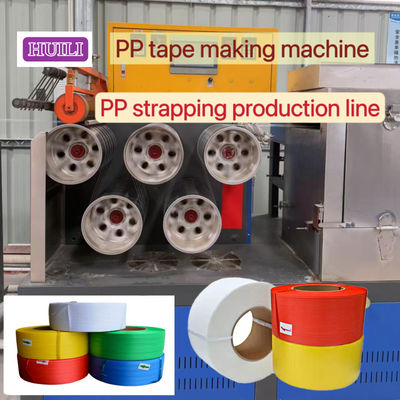

Features of the winding machine for the PP strapping production line:

1. The winding machine uses imported accessories, torque motor control, flattened winding, small deviation on both sides, suitable for use with fully automatic strapping machines.

2. The winding machine can wind 5-19mm PP strapping belt for packaging, and can be wound by meter or weight.

3. The multifunctional winding machine has good flexibility, and the height and diameter of the paper core can be customized according to customer requirements.

PP strap Wrapping Machine:
Compatible with automatic/semi-automatic wrapping machines

About th SERVICE:

We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP strap making machine.

2.Analysis of the cost of PP strap making machine.

3.Raw materials that can be used for PP strap making machine.

After-sales service:

1.Water and electricity circuits of PP strap making machine, circuit drawings, etc.

2.Installation, commissioning and training of PP strap making machine.

3.Maintenance service of PP strap making machine.

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice

FAQ:

Q:What is the voltage of PP strap making machine?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP strap making machine produced?
A:We are from China.
Q:Can PP strap making machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strap making machine stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strap making machine support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.

Q:What does the wrapping machine part of the PP strap making machine look like?

A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
