High-speed electric strapping machine for PP PET strapping bands handheld packaging machine
Product Details
| Name: | Handheld Electric Strapping Machine | Suitable Products: | PP PET Belt |
|---|---|---|---|
| Suitable Belt Thickness: | 0.4-1.2 Mm | Suitable Belt Width: | 11-16 Mm |
| Bonding Method: | Hot Melt Bonding | Matching: | Friction Fit |
| Bonding Rate: | 100% | Tightening Force: | 0-3200N |
| Gear: | Metal Anti-slip Gear | Control Method: | PLC Numerical Control |
| Battery: | Lithium Battery | Battery Empty Capacity: | 4000 MA |
| Highlight |
high-speed electric strapping machine,handheld PP PET strapping machine,electric packaging machine with warranty |
||
Product Description
High-speed electric strapping machine for PP PET strapping bands handheld packaging machine
DESCRIPTI OF PP PET HANDHELD ELECTRIC STRAPPING MACHINE

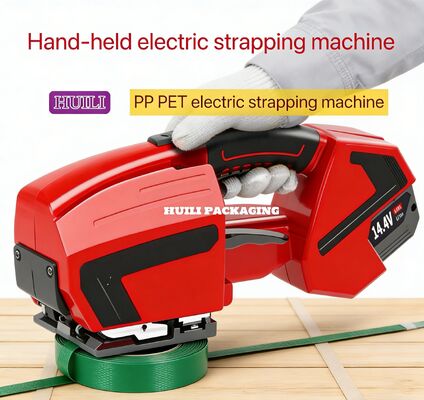

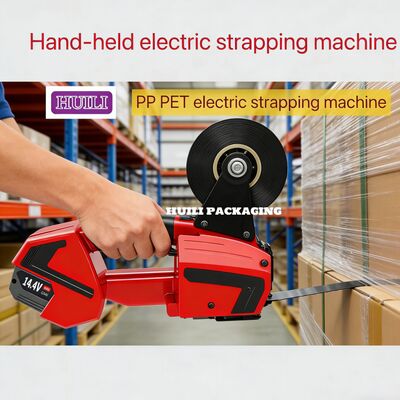

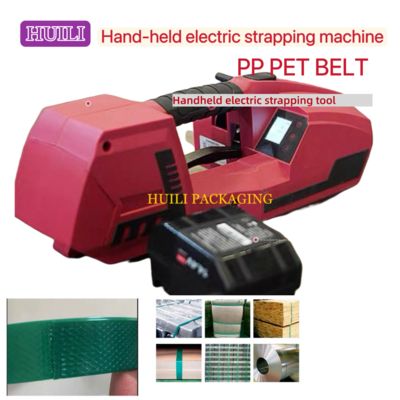

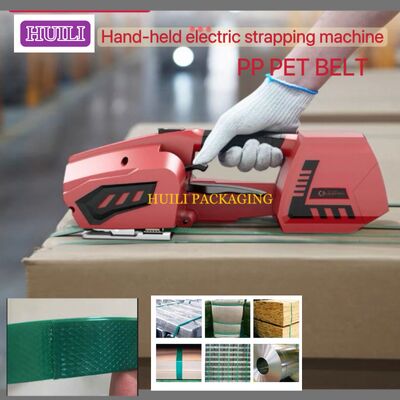

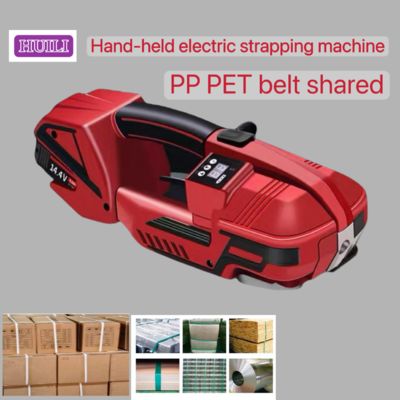

Handheld electric strapping machine
Handheld electric strapping machine is a portable and efficient industrial strapping tool. Powered by electricity, it automatically performs the processes of tightening, sealing (or locking), and cutting the strapping band, thus replacing traditional manual or semi-automatic strapping tools.
KEY FEATURES
Portable and Efficient-------Compact and lightweight (typically 1-3 kg), they can be operated with one hand, making them suitable for mobile work.
Electric Drive--------A motor automatically performs tensioning, cutting, and locking operations, saving effort and increasing efficiency (a single strap takes only 1-3 seconds).
MACHINE PARAMETERS
| Name | Handheld Electric Strapping Machine |
| Strapping Type | PP PET belt |
| Strapping belt width | 11-19mm |
| Strapping belt thickness | 0.4-1.2mm |
| Tightening force | 0-3200N(Adjustable) |
| Interface type | Friction hot melt bonding |
| Battery capacity | 40.A/h 50/60hz 75w |
| Suitable voltage | 100-230V |
| Machine size | 380*130*130mm |
| Charging time | 90 min |
| Machine weight | 4.0kg |
| Carton size | 400*140*150mm |
CORE STRUCTURE
Main Body------Contains the motor, control circuitry, transmission mechanism, and friction bonding.
Tightening Mechanism------Automatically tightens the strapping and maintains tension, ensuring high bond strength and preventing it from falling off.
Locking Device------ Secures the strapping material using friction welding or metal buckles.
Cutter------ Automatically cuts off excess strapping material after bundling.
Battery Compartment------ Removable lithium battery (common voltages 12V-24V).
Guide Slot------Guides the strapping material for proper insertion.
.
Key Features and Advantages
High Efficiency
Pneumatic strapping machines operate at exceptional speeds, typically completing a full cycle of tensioning, bonding, and cutting within 1-2 seconds. This significantly enhances production efficiency in assembly line operations and bulk packaging.
High Strapping Force and Robustness
Utilising pneumatic motors and cylinders, it generates substantial and consistent tension force, far exceeding manual tightening strength. The heat-sealed joint achieves 50%-80% of the strap's tensile strength, delivering exceptional reliability—particularly suited for heavy goods requiring high-strength securing.
FAQ:
Q: How many batteries does the handheld electric baler have?
A: Normally 1, 2-3 can be selected according to demand
Q; Is the handheld electric baler suitable for PP PET strapping belt?
A: The same machine can be used for 2 types of PP PET strapping belts, and the spring needs to be replaced. The tightening force is different, and the selected spring is also different.
Q: Is the handheld electric baler suitable for air transportation?
A: Yes, we have test data
Q: Does the handheld electric baler have a warranty?
A: Warranty time: 12 months
Q: Where is the handheld electric baler made?
A: China, FE/CO certificate of origin can be provided
Q: What are the specifications suitable for the handheld electric baler?
A: PP PET Strapping belt width: 11-19mm
Q: MOQ?
A: 1 PCS
