PP strap making machine 5 mm PP strapping equipment with automatic winding machine
PRODUCT DESCRIPTION OF PP STRAPPING MQUIPMENT:
The whole machine of the PP strapping production line/PP STTAP MAKING MACHINE adopts a PLC control system, a PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate. PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate.

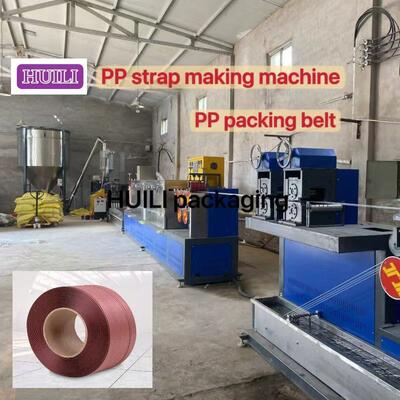

The main components of PP strapping equipment:
Feeder---- transfer PP raw materials into the machine.

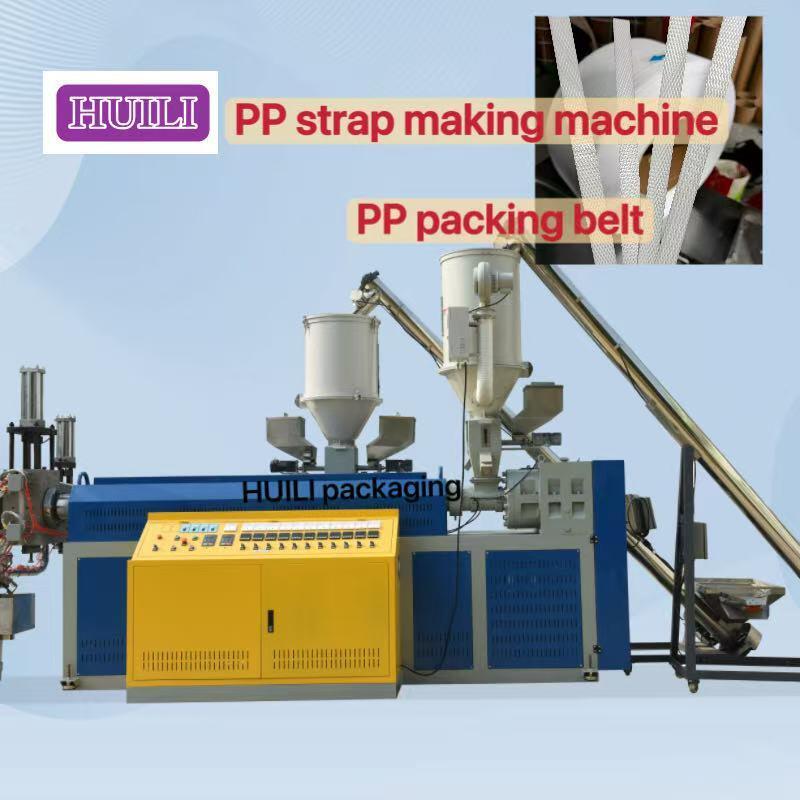

Extruder----heat and melt the PP raw materials and extrude them into shape.
Molding mold---- make the molten PP belt embryo pass through the mold to form a strip.
Cooling water tank----cool the extruded PP belt embryo to ensure its shaping.
Tractor----pull out the cooled strapping tape to maintain a stable production speed.
Oven---- heat the strapping t to improve its strength and toughness.
Embossing machine---- emboss the surface of the strapping tape to increase friction and prevent slipping.
Shaping oven----heat again, shape, and make the PP belt more standardized.
Reeler---- reel the strapping belt into rolls for easy storage and transportation.
EXTRUSION PARAMETERS TABEL
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Process flow of PP strap making machine:
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → ⑩oven tempering and setting →⑪ cooling →⑫ finished product winding

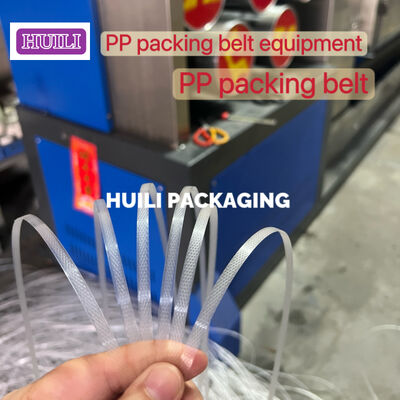

Features of embossing wheel:
1. The embossing wheel is nitrided and heat-treated to achieve a surface hardness of 60 degrees, which is strong and durable. The surface texture of the strapping belt pressed out by this embossing machine is clear and rough enough, and the automatic strapping machine uses strong belt feeding.
2. The upper and lower flower wheels of the embossing machine are equipped with synchronous gears to ensure synchronous rotation of the upper and lower wheels, ensuring that the flower spinning on both sides of the strapping tape is completely consistent, increasing the beauty and transparency of the strapping tape.
3. When assembling the upper and lower flower wheels, a fixed gap is left to prevent collision, which extends the service life of the flower wheels.

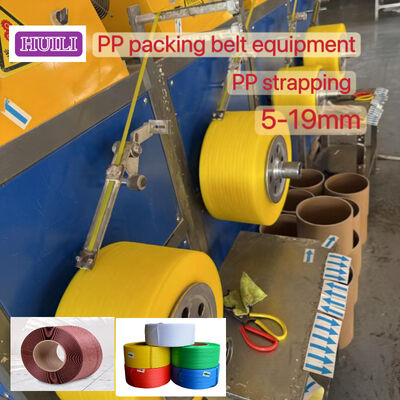

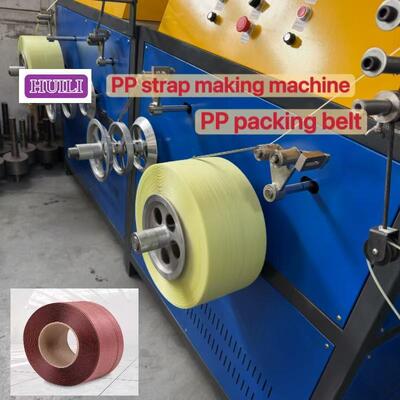

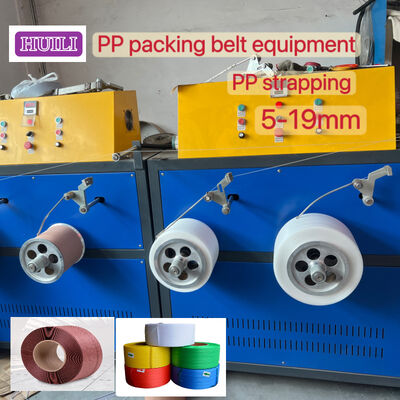

Features of the winding machine for the PP strapping production line:
1. The winding machine uses imported accessories, torque motor control, flattened winding, small deviation on both sides, suitable for use with fully automatic strapping machines.
2. The winding machine can wintd 5-19mm PP strapping belt for packaging, and can be wound by meter or weight.
3. The multifunctional winding machine has good flexibility, and the height and diameter of the paper core can be customized according to customer requirements.
PP strapping tape is suitable for baling machines:
Fully automatic strapping machine
Semi-automatic strapping machine
High-speed ultra-thin strapping machine
Handheld electric strapping machine
Manual strapping machine (iron buckle)
About th SERVICE:
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP strap making machine.
3.Raw materials that can be used for PP belt making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
