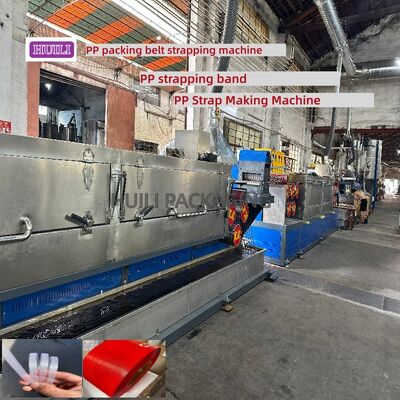

PP Strapping Belt Making Machine Single-Screw PP Strapping Extrusion Line equipped with SKD-11 Embossing Wheel

PP Strapping Belt Making Machine Single-Screw PP Strapping Extrusion Line equipped with SKD-11 Embossing Wheel

Product Description of PP strapping band making machine:

PP strapping band making machine/pp strap making machine is a high-speed extruder that can produce PP strapping belt for strapping various products

It has the following features:

1.HIGH-PRECISION SPECIALIZED SCREW
The PP strapping equipment is paired with a renowned, high-quality, and high-precision specialized screw for extrusion. Engineered with custom-tailored parameters, this screw features outstanding characteristics: high output volume, excellent plasticization efficiency, high hardness, and exceptional wear resistance. When combined with a quantitative extrusion system, the resulting strapping tape exhibits uniform and consistent width and thickness, with minimal dimensional deviation, fully meeting national industry acceptance standards for strapping materials.
2.NON-STOP AUTOMATIC SCREEN CHANGER
The system comes standard with a non-stop automatic screen changer, allowing screen replacement to be performed without halting equipment operation—thereby significantly boosting overall production efficiency. It utilizes a large-area, four-screen cyclic filtration structure that ensures superior filtration performance. This design eliminates the need for frequent screen replacements, saving both time and labor while minimizing production losses caused by interruptions.
3.INTELLIGENT PLC CONTROL SYSTEM
Equipped with a bilingual (Chinese/English) intelligent PLC control system, the machine features a clean, intuitive, and easy-to-understand user interface. The control modules are robust, durable, and designed for a long service life with an extremely low operational failure rate. The system includes an exclusive parameter memory function that automatically saves production parameters for each specific strapping tape specification. For subsequent production runs of the same specification, these parameters can be instantly recalled, enabling "one-touch" production startup and facilitating quick, hassle-free commissioning.

                     EXTRUSION PARAMETERS TABEL

The process flow of PP strapping belt making machine:

①Raw materials →②Stirring raw materials →③Pre-drying raw materials →④Main machine melting raw materials-extrusion →⑤Cooling and forming the blank (strip blank) →⑥Oven heating and shaping →⑦First stretching →⑧Second stretching →⑨Embossed →⑩Oven tempering and shaping →⑪Cooling →⑫Finished product winding (can support online printing fonts

HIHG-QUALITY EMBOSSING WHEEL:
1. The embossing wheel is crafted from premium SKD-11 material, offering exceptional wear resistance, durability, and a long service life. Following the embossing process, the patterns on both the upper and lower surfaces of the strapping belt are perfectly aligned, featuring crisp textures and uniform designs. Furthermore, the depth and style of the embossing are fully adjustable, resulting in a high-grade finished product with superior aesthetic quality.

2. The upper and lower patterns are perfectly matched, creating an elegant and aesthetically pleasing appearance while simultaneously enhancing the tensile strength of the strapping belt.

Applicable to balers:

1. Fully automatic baler

2. High-speed baler

3. Semi-automatic baler

4. Handheld electric baler

5. Manual clamp baler

About th SERVICE:

We provide comprehensive technical support and service for our PP strapping band making machine​. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP strapping belt making machine​.

2.Analysis of the cost of PP strapping band making machine​.

3.Raw materials that can be used for PP strapping band making machine​.

After-sales service:

1.Water and electricity circuits of PP strapping band making machine​ circuit drawings, etc.

2.Installation, commissioning and training of PP strapping band making machine​

3.Maintenance service of PP strapping band making machine​

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice

FAQ:

Q:What is the voltage of PP strapping belt making machine​?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping belt?
A: L:36 M.
Q:Where is the PP strapping belt making machine?
A:We are from China.
Q:Can PP strapping band making machine​ provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping band making machine​?
A:We have 30 years of manufacturing experience, and have their own PP strapping belt making machine​ plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping band making machine​ customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.

Q:What does the wrapping machine part of the PP strapping band making machine​ look like?

A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
