| Name: | Pet Strap Manufacturing Machine | Strap Width: | 9-32 Mm |
|---|---|---|---|
| Strap Thickness: | 0.6-1.2 Mm | Paper Tube Size: | Ø406*180 Mm |
| Metering Melt Pump: | 100 CC | Screen Changer: | Chemical Fiber Filter |
| Control Mode: | PLC | Extrusion Method: | High Speed |
| Not Easy To Break: | YES | Wrapping Machine: | Automatic/semi-automatic |
| Line Speed: | 100-200 M/min | Automation: | Automation PET |
| Highlight: | 16mm PET strap making machine,shredded PET strapping machine,high-speed dehumidifier PET strap production |
||

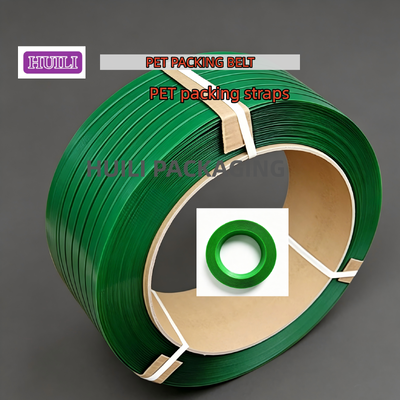

PET plastic steel belt is a high speed and environmentally friendly extruder, which can produce PET belts with width 9-32mm, with the following advantages:
1. Tensile strength ----PET packing belt production line has the tensile strength of steel tape, good ductility and better impact resistance. It is not easy to break, which can ensure the safety of product transportation.
2. small elongation ----PET plastic steel belt is a kind of bundling products, its elongation change is very small, its elongation is only 1/6 of polypropylene, it can keep the tension, and make its elongation no longer change after packing.
3. Strong temperature resistance ----PET Plastic Steel Belt has the characteristics of high temperature resistance, cold resistance, etc. The melting point of PET strapping is about 260℃, which can be used for a long time without deformation under the environment of 120℃, and has good stability.
4.Environmental protection-----PET steel belt is beautiful and will not rust, but also can be recycled, energy saving and environmental protection, low manufacturing cost.
![]()
100% PET crushed material or bottle flake material
100% PET bottle flakes or crushed materials
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
|---|---|---|---|---|---|
| Raw materials | PET 100% Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed (m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| PLC control system | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dryer tank | 3000L | 4000L | 5000L | 6000L | 6000L |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | 100CC | 100CC | 100CC | 100CC |
| Screen Changer | Single cylinder | ||||
| Winding machine | Automatic winding/ Semi-automatic winding | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |

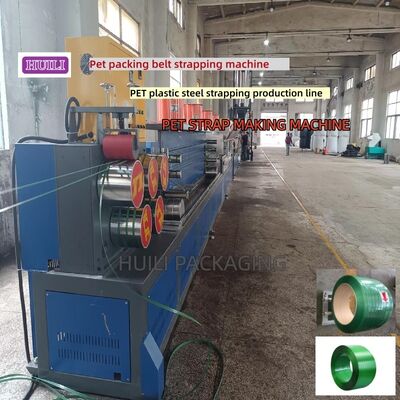

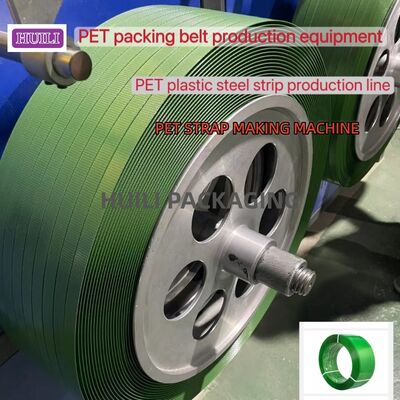

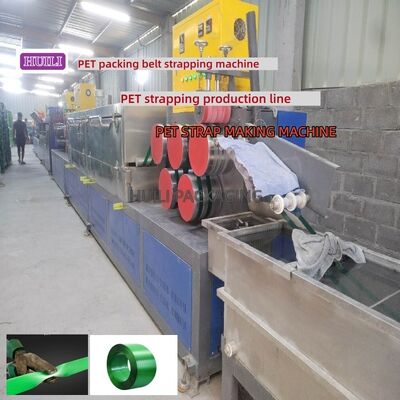

PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through processes including melting, extrusion, stretching, shaping, and winding. The resulting PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability.
