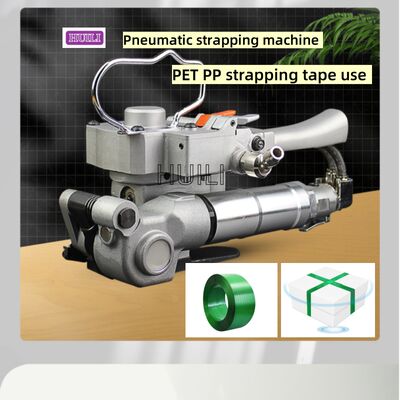

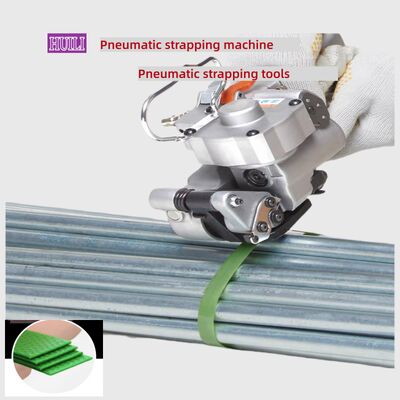

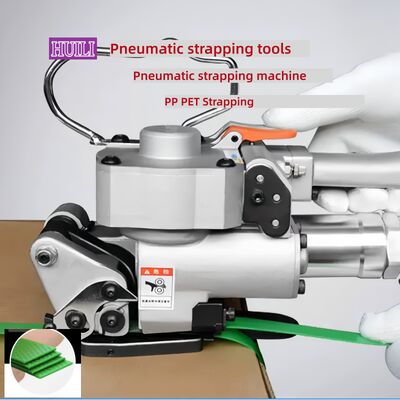

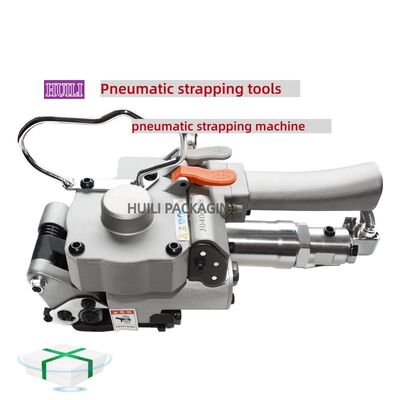

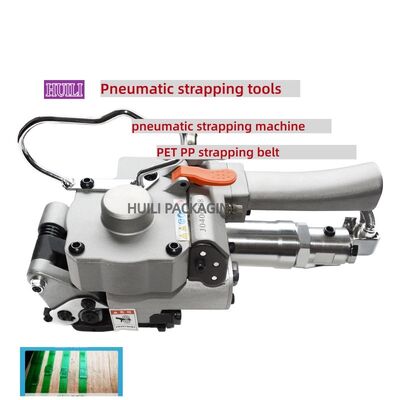

PP PET Strap Pneumatic Strapping Machine Handheld Strapping Tool pneumatic strapping machine
Product Details
| Name: | Pneumatic Strapping Machine | Bonding Method: | Hot Melt Bonding |
|---|---|---|---|
| Applicable Packing Belt: | PET PP | Width Of Packing Tape: | 13-25mm |
| Thickness Of Packing Tape: | 0.5-1.5mm | Maximum Tension: | 3500N |
| In-band Mode: | Upper And Lower Belt | Machine Size: | L280xW160xH180 Mm |
| Sealing Type: | Friction Weld | Pressure: | 0.5-0.8 MPa |
| Highlight |
PP PET pneumatic strapping machine,handheld pneumatic strapping tool,pneumatic strapping machine with warranty |
||
Product Description
Pneumatic strapping machine is suitable for PP PET packaging straps, and is designed for light, medium and heavy strapping applications.
This pneumatic strapping machine is suitable for various vertical and horizontal strapping positions, making it ideal for almost all applications across various industries.

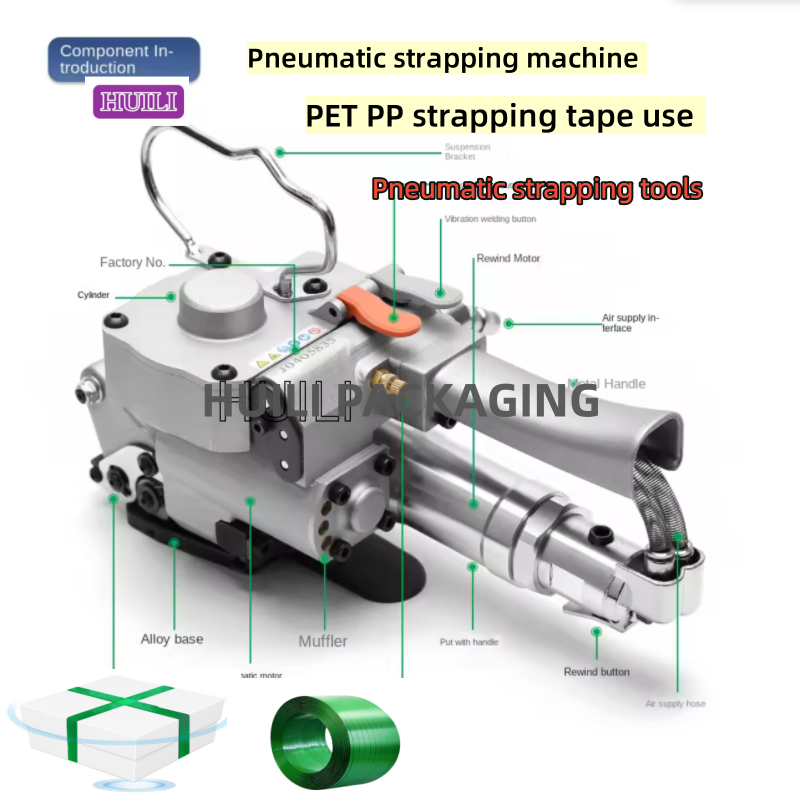

- Main Body --------- Typically constructed of high-strength aluminum alloy or steel, it is durable and can withstand high strapping tension.
- Air Motor --------- The core power source of the equipment, converting compressed air energy into mechanical energy to tighten the PP and PET strapping straps.
- Tensioning System --------- Driven by the air motor, the strapping straps are tightened at high speeds through a gear or friction wheel mechanism.
|
Products Type |
19/25 |
|
Band width |
13-19mm |
|
Band thickness |
0.5-1.5mm |
|
Suitable band |
PP & PET strapping |
|
The form of sealing |
Frictional heat welding |
|
Max tension |
3000N |
|
pressure |
0.5-0.8MPa |
|
Tool weight |
3.8 / 5 KGS |
|
Machine dimension |
280x160x180mm |
I. Core Functions
Tightening
Function Description: The pneumatic strapping machine automatically tightens the straps wrapped around the goods to the preset tension.
Purpose: To ensure the straps adhere tightly to the surface of the goods, preventing them from loosening or shifting during transportation and storage.
Adhesion/Locking
Function Description: Secures the joint through two main methods:
Hot-Melt Friction Bonding: This is the most common method. The machine uses a tiny "friction plate" to vibrate and rub the two straps (overlapping sections) at high speed, generating heat to melt their surfaces. Then, rapid pressure is applied and cooling occurs, fusing them into a strong bond.
- Air Source Requirements------- Use dry, clean compressed air. Moisture and impurities can damage the pneumatic motor and internal precision components. It is recommended to install a pneumatic triplex (filter, pressure regulator, and lubricator) at the air intake.
- Air Pressure Adjustment--------Strictly adjust the operating air pressure according to the machine nameplate or manual. Excessively low air pressure will result in loose straps, while excessive air pressure will increase component wear and even damage the machine.
- Regular Maintenance-------- Regularly lubricate moving parts, inspect the condition of worn parts (such as friction plates, cutters, and gears), and replace them promptly.
- Safe Operation-------- When strapping, keep your body and hands away from moving parts (such as the tension pulley and cutter) to prevent pinching. Wear necessary labor protection equipment, such as gloves and goggles.
- Appropriate Strapping Strap--------- Use PP strapping belt of the specifications and quality that meet the machine's requirements. Inferior strapping tape will compromise strapping and damage the machine.
