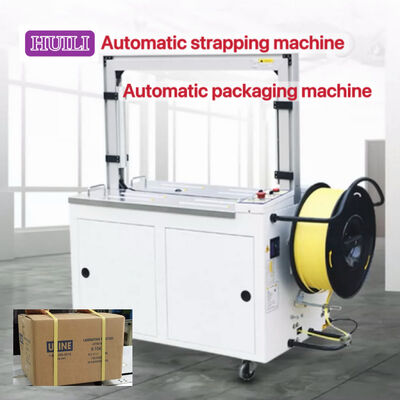

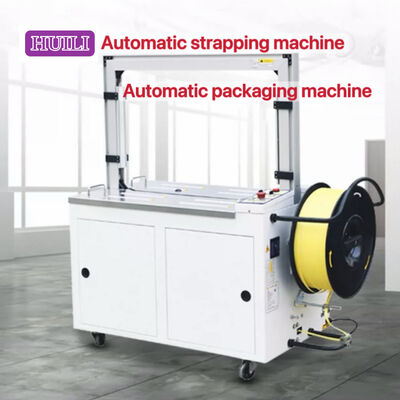

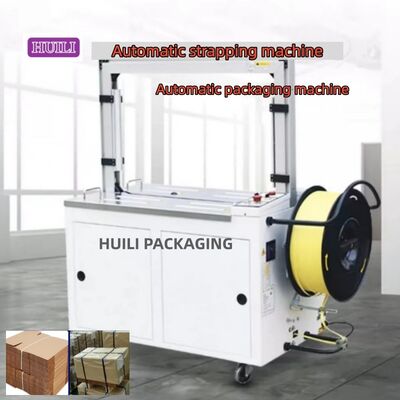

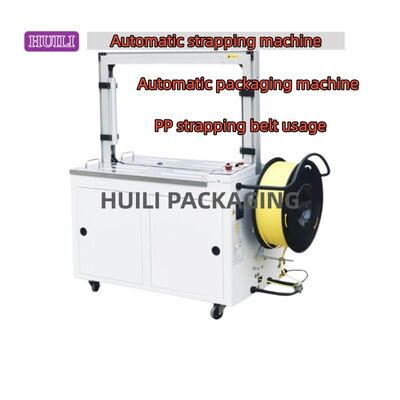

Automatic strapping machine PP PET strap with fully automatic packaging tools for desktop strapping machines

Automatic strapping machine PP PET strap with fully automatic packaging tools for desktop strapping machines

DESCRIPTION OF AUTOMATIC STRAPPING MACHINE

Automatic Strapping Machine/Semi-Automatic Strapping Machine

An electric strapping tool, also known as an electric strapping tool, is an automated, electrically powered tool that quickly tightens, secures, and cuts strapping straps (such as PP straps, PET straps, or steel straps). It is widely used in industries such as logistics, warehousing, manufacturing, and construction. Compared to manual or pneumatic strapping tools, it offers greater efficiency and lowers labor consumption, making it suitable for medium- to high-strength strapping.

1. Basic Components

Motor System--------Provides power, driving the tensioning, locking, and cutting operations.
Control Module-------Adjusts tension and controls the operating process (some models include a display).
Strapping Mechanism-------Includes a strap guide, friction welding joint, or metal buckle locking device.
Cutter-------Automatically cuts excess strapping, ensuring a smooth cut.
Power Supply--------Lithium battery (mainstream) or plug-in (industrial-grade), typically 12V-24V.

                                                                           PARAMETERS

KEY FEAGURES:

One-Button Operation---------The operator only needs to press the start button or trigger the machine via a foot switch to automatically complete a series of actions, including strap feeding, tensioning, heat sealing, and cutting.

Automatic Adjustment-------- Many models have automatic sensing functions that can automatically adjust the position and length of the strapping according to the size of the package, requiring no manual intervention.

PLC (Programmable Logic Controller) Control--------- The core control system is stable and reliable, allowing users to customize and store multiple packaging modes (such as strapping tightness) according to different product needs.

Integration and Linkage---------- It can be easily integrated into automated production lines, achieving fully unmanned automated packaging through cooperation with photoelectric sensors, conveyor belt control systems, etc.

INSTAKKATION OF PP STRAP REEL

1) First, unscrew the handwheel and remove the outer banding disk.

2) Next, load the PP belt roll, the tape ring should be loaded according to the rotational direction marked on the belt disk, and the bracing claws hold up the belt ring.

3) Load the outer belt disk, please note that when loading the outer belt disk, the slot on the disk should be aligned with the pin on the shaft.

4)Tighten the handwheel

ABOUT AFTER -SALES:

1. The warranty period of our fully automatic strapping machine is 12 months.

2. Our technicians support 24-hour online service.

3. Our fully automatic strapping machines are strictly inspected before leaving the factory and support connection detection.

4. Our fully automatic strapping machines are equipped with wearing parts.

5. Our fully automatic strapping machines can customize voltage and current according to customer requirements.

ABOUT US:

Shenzhen Jiatuo Plastic Machinery Co., Ltd. is a manufacturer and supplier of strapping equipment and strapping products, integrating production and sales.

FACTORY SALES:

PP strapping equipment, PET strapping equipment, PP strapping, PET Packing belt, PE stretch film, transparent tape, semi-automatic/fully automatic strapping machines, handheld electric strapping machines, etc.

We currently have 4 companies with strong production capabilities. We have our own sales team, production team, management team, R&D team, quality control team, and after-sales team. We own our own production plant, enabling fast and high-quality delivery. We support customized products. Welcome to inquire.

PET/PP strapping equipment manufacturing plant: 1 pcs

PET packing belt manufacturing plant: 1 pcs

PP strapping manufacturing plant: 1 pcs

Automated equipment factory: 1 pcs

FAQ:

Q: Can the size of the Automatic Strapping Machine be customized?
It can be customized according to requirements, and the delivery date is longer.
Q: Does the Automatic Strapping Machine have after-sales service?
A: We are a manufacturing factory with our own engineering team and after-sales team.
Q: Can the voltage of the Automatic Strapping Machine be customized?
A: Customization is supported
Q: What is the packaging method of the automatic baler?
The automatic baler is packaged in an export wooden box and is securely fixed in the wooden box.
Q: What kind of packaging material is suitable for the automatic baler?
A: PP strapping, width: 5-19mm (optional)
