4-12 straps PP strapping machine 5-19 mm High-speed PP strapping production line
Product Details
| Type: | PP | Equipment: | PP Strapping Equipment |
|---|---|---|---|
| Width: | 5-19 Mm | Thickness: | 0.3-1.2 Mm |
| Raw Materials: | 100% PP | Advanced Equipment: | Advanced Equipment |
| PLC Control: | Plc | High-Speed Equipment: | High-Speed |
| High-Speed Extruder: | High-Speed Extruder | Processing: | Wire Drawing |
| Highlight |
4-12 straps PP strapping machine,high-speed PP strapping production line,5-19 mm PP strap extrusion machine |
||
Product Description
4-12 straps PP strapping machine 5-19mm High-speed PP strapping production line
PRODUCT DESCRIPTION OF PP STRAPPING PRODUCTION LINE

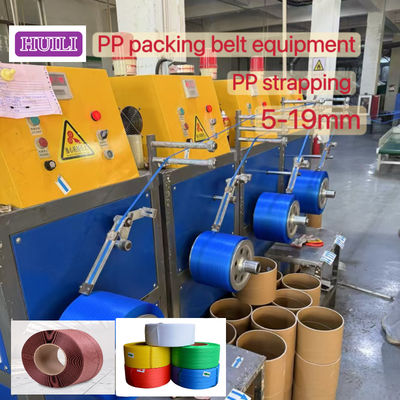

PP strapping production line
This PP strapping belt production line is primarily used to produce PP strapping belt for bundling and packaging. The entire equipment utilizes PLC control, enabling high-speed automated production. Utilizing a dedicated PP extruder screw and pressure sensor, it ensures stable production and high-quality strapping belt.
It can use 100% recycled PP flakes or virgin material, or a combination of both, saving manufacturing costs and reducing production expenses.
4 straps -PP strapping equipment parameters
| Name | PP packaging tape equipment |
| Number of strips | 4 strips |
| Extrusion specifications | Width: 5-19mm, Thickness: 0.4-1.2mm |
| Material barrel | 150kg |
| Control system | PLC |
| Screw | ¢ 110*3300 |
| Screw feeder | 1 set |
| Motor power | 37(kw) |
| Screen changer | Automatic/Manual |
| Winding machine: | Automatic/Manual |
| Total power of equipment | 100kw |
| Production capacity: | 230-260kg /h |
| Equipment voltage | three-phase 380v /50Hz (Support customization) |
| Container | 40GP*1+20GP*1pcs |

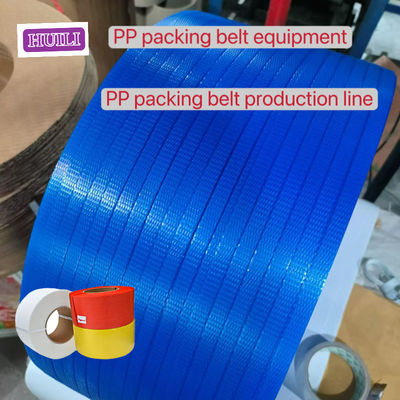

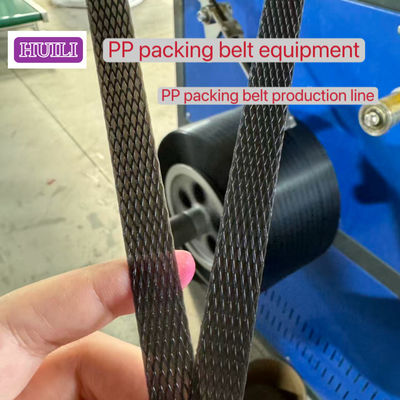

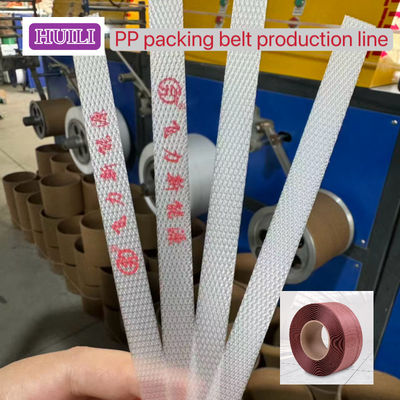

The finished PP belt is wound neatly, rolled flat, and has no overlap. It is suitable for all kinds of fully automatic and semi-automatic baling machines.
Main components
The PP strapping production line is mainly composed of the following parts:
Feeder---- transfers PP polypropylene raw materials to the machine barrel.
Extruder------ used for melting and extrusion of plastics.
Die head-----controls the molding of the extruded plastic strip.
Cooling water tank----- cools the extruded plastic strip.
Stretching oven------- ensures the stretching ratio of the strip and more uniform plastic molding.
Tractor----- stretches the formed plastic.
Forming oven------ further ensures the stability of the shape of the plastic.
Winding machine------ winds the formed plastic strapping tape into rolls and puts it into storage.
PLC control system------- controls the entire machine, specification debugging, and parameter ratio setting.
PP strapping tape is suitable for baling machines:
Fully automatic strapping machine
Semi-automatic strapping machine
High-speed ultra-thin strapping machine
Handheld electric strapping machine
Manual strapping machine (iron buckle)
FQA:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
